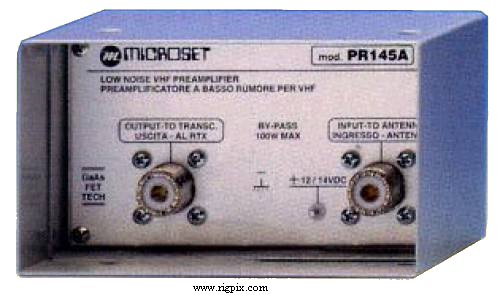

Microset PR-145A
SPECIFICATIONS
| Type: | Amateur VHF switched masthead preamplifier |
| Frequency range / Band: | 144-146 MHz (2 m) |
| Gain: | 18 dB |
| Noise factor: | 0.9 dB |
| Max feed through RF power: | 100 W |
| Impedance / connectors: | 50 ohm / Two SO-239 |
| Mast diameter: | ?-? mm (?-?") |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | ? mA |
| Dimensions (W*H*D): | 126*75*75 mm (4.96*2.95*2.95") |
| Weight: | 625 g (1.38 lb) |
| Manufactured: | xxxx-xxxx |
| Other: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
|
