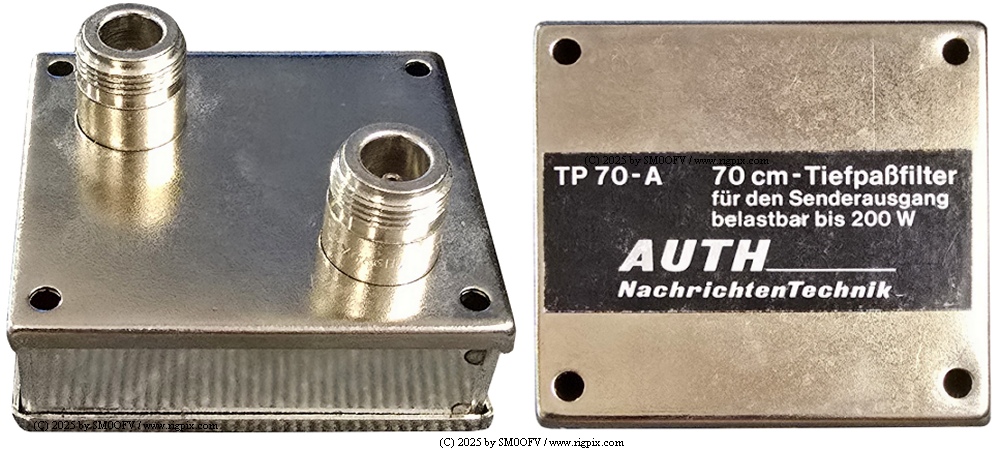

Auth TP 70-A (By Auth NachrichtenTechnik)
SPECIFICATIONS
| Type: | Low pass filter |
| Pass band: | 0-450 MHz |
| Pass-through attenuation: | Less than 0.3 dB |
| Pass-through power: | Max 200 W |
| Stop band: | 700-2000 MHz |
| Stop band attenuation: | More than 50 dB |
| Impedance / connectors: | 50 ohm / Two N-jacks (Standard. Other connectors are optional) |
| Dimensions (W*H*D): | 65*60*22 mm (2.56*2.36*0.87") |
| Weight: | 150 g (5.29 oz) |
| Manufactured: | Germany, 20xx-20xx |
| Additional info: |
New price, may 2025 from the manufacturer: 69.00 Euro
|
| Related documents: | Datasheet (290 KB, In German) |
| Reviews: | |
|
