Auth TP 30 (By Auth NachrichtenTechnik)

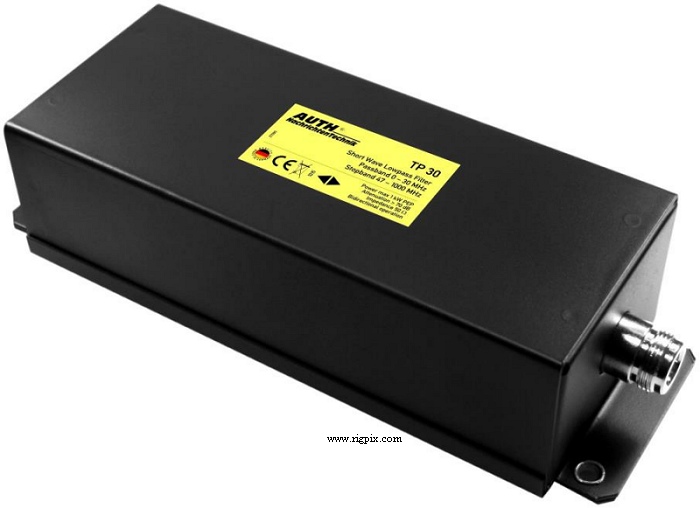

A picture of Auth TP 30 (By Auth NachrichtenTechnik)

SPECIFICATIONS

Type:Low pass filter
Pass band:0-30 MHz
Pass-through attenuation:Less than 0.3 dB
Pass-through power:Max 1 KW
Stop band:47-2000 MHz
Stop band attenuation:More than 50 dB
Impedance / connectors:50 ohm / Two SO-239 (Standard. Other connectors are optional)
Dimensions (W*H*D):190*70*48 mm (7.48*2.76*1.89")
Weight:? g (? oz)
Manufactured:Germany, 20xx-20xx
Additional info: New price, may 2025 from the manufacturer: 69.00 Euro
Related documents:Datasheet (290 KB, In German)
Reviews:
