| GENERAL |

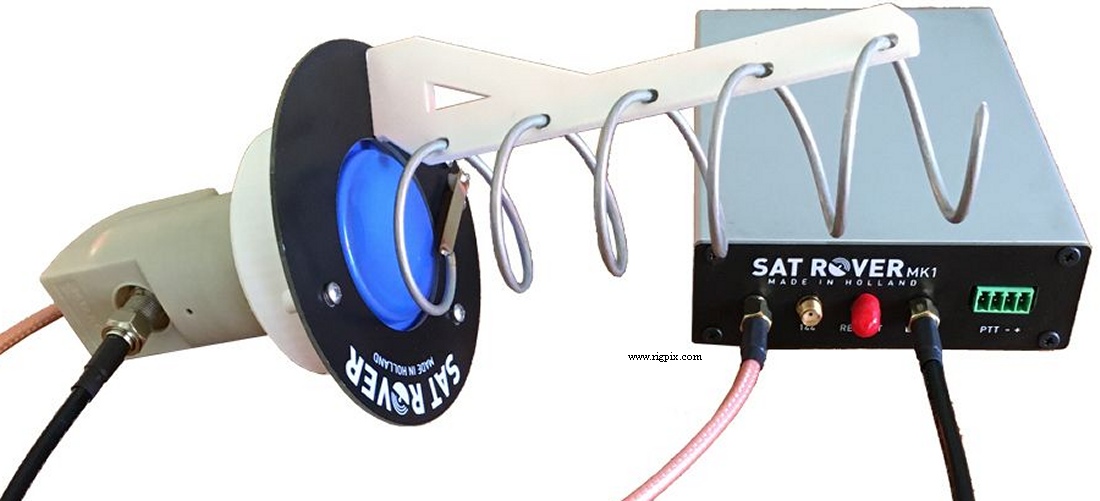

| Type: | Amateur QO-100 satellite transverter |
| Frequency range / band: |
TX: 2400.0-2400.5 MHz (13 cm)
RX: 10489.5-10490.0 MHz (3 cm)
|
| IF: | 144.5-145.0 MHz (2 m) |
| Frequency stability: | ? ppm (Internal OCXO) |
| Power supply: | 10-13.8 VDC |
| Current drain / power consumption: | RX: Max ? mA
TX: Max 2 A |
| Impedance / connectors: | 50 ohm / Four SMA jacks |
| Dimensions (W*H*D): |
Transverter: 105*40*165 mm (4.13*1.58*6.5")
LNB/Helix (Length*diameter): 200*100 mm (7.87*3.94")
NB! LNB/helix neck is standard 40 mm LNB mount
|
| Weight: | Transverter: ? Kg (? lb)
LNB/Helix: ? g (? oz) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Sensitivity: | |
| Gain: | 40 dB |
| Noise figure: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
Max 4 W
|
| Spurious emissions: | Better than -? dB |
| RF drive power: | Less than 2 W |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | The Netherlands, 2023-202x |
| Additional info: |
Suitable for offset dish, 60 to 90 cm diameter.
90 cm offset, f/D 0.6 recommended.
New price, december 2023 in the Netherlands: 500.00 Euro
|
| Related documents: | User manual (2.8 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
