Drake SSR-1

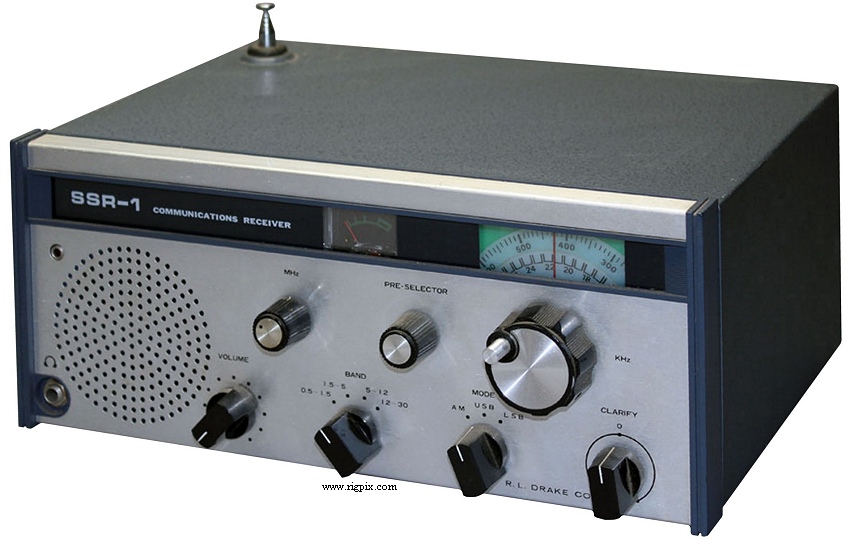

A picture of Drake SSR-1

SPECIFICATIONS

GENERAL
Type:HF receiver
Frequency range:0.5-30 MHz in 30 ranges (Wadley loop system)
Tuning steps:Continuous
Frequency stability:? ppm
Mode:AM / SSB / CW
Channels / memory management: None
Power supply:Mains: 117 / 240 VAC
or 13.8 VDC external
or eight LR20 / D batteries
Current drain / power consumption:100 mA (No signal)
Antenna impedance / connector:75 ohm / Screw terminal (or built-in whip)
Dimensions (W*H*D):330*140*280 mm (13*5.5*11")
Weight:6.4 Kg (14 lb)
Other features:20 dB attenuator.




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 44.5 MHz
2nd IF: 455 KHz
Sensitivity: AM (10 dB S/N)
0.5-2 MHz: 3 uV
2-30 MHz: 1 uV
SSB (10 dB S/N)
0.5-2 MHz: 1 uV
2-30 MHz: 0.3 uV
Selectivity: AM: 5.5 KHz (-6 dB)
SSB: 3 KHz (-6 dB)
Image rejection:50 dB
AF output power / speaker:2 W at 5% distortion / 8 ohm
External speaker connector:




MISCELLANEOUS
Manufactured:USA, 1975-197x (Discontinued)
Additional info:New price 1975 in Sweden: SEK 1676:-
Related documents:User manual (1.1 MB)
Modifications and fixes:
Reviews:
Options / Accessories:
- -
