Zodiac Hider 40

A picture of Zodiac Hider 40

SPECIFICATIONS

GENERAL
Type:Citizen band transceiver
Frequency range:26.965-27.225 MHz
Channels / tuning steps:23 (1-22 + 11A)
Mode:AM
Frequency control:PLL (TC9100)
Frequency stability:?%
Clarifier or Delta tune:No
Power supply:12 VDC (Barrel connector, center positive)
Current drain / power consumption:RX: Max 250 mA
TX: Max 1 A
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):170*55*155 mm (6.69*21.16*6.1"), without mounting bracket
Weight:Transceiver: 1.21 Kg (2.67 lb)
Remote control mike: 305 g (10.76 oz)
Other features:PA. External selcall jack.




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? W at ?% distortion / ? ohm
External speaker connector:DIN




TRANSMITTER SECTION
RF output power:~3.5 W (5 W input)
Modulation system:
FM deviation (Factory set):No FM
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / 16-pin (Large metal locking ring connector)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:Japan, 1979-1980 (Discontinued)
Main PCB: 1110 by ?
Single sided. Through-hole components
Sub PCBs:
Additional info: New price 1979 in Sweden: SEK 1695:-
Related documents: RF final: 2SC1678
Sams Photofact #:None
Modifications and fixes:
Reviews:Radio & Television: #6/7 1979
Options / Accessories:
- -
Another picture of Zodiac Hider 40
An inside picture of Zodiac Hider 40

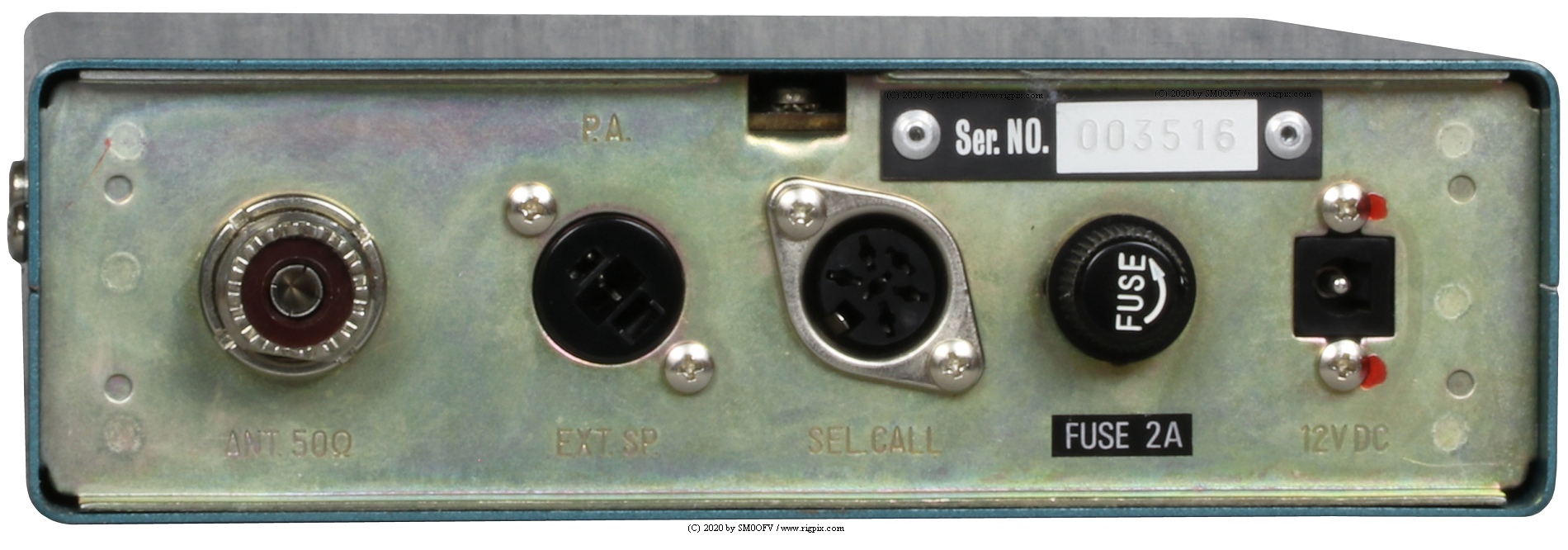

A rear picture of Zodiac Hider 40
