Baofeng UV-5R Pro

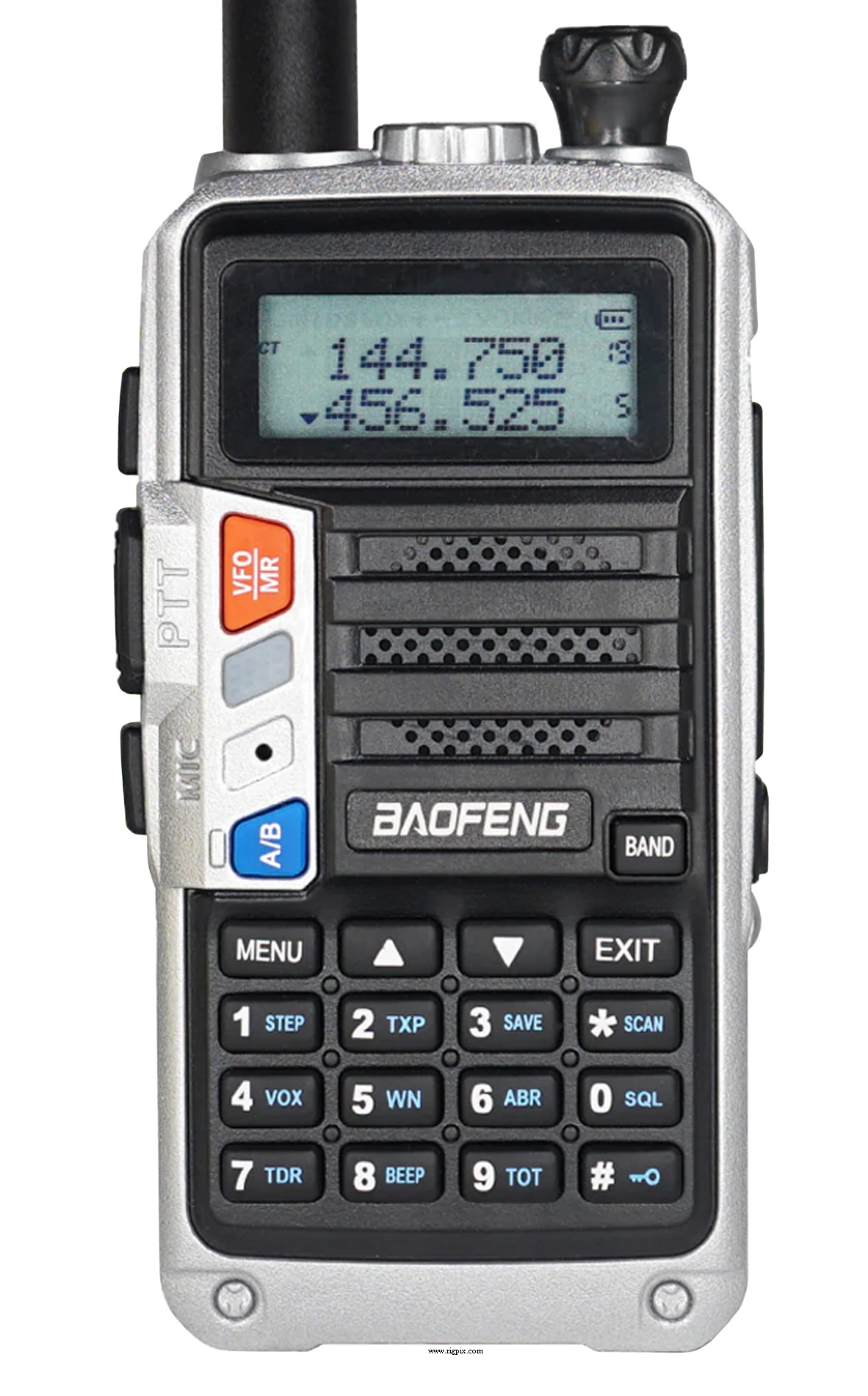

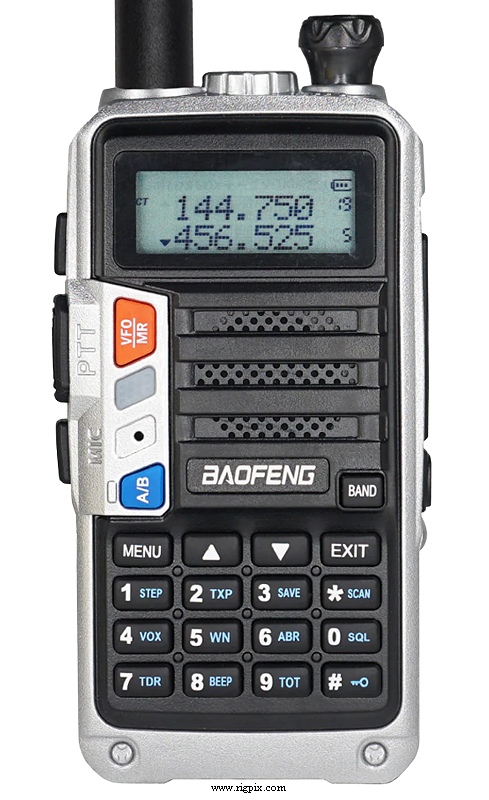

A picture of Baofeng UV-5R Pro

SPECIFICATIONS

GENERAL
Type:Amateur VHF/UHF transceiver
Frequency range: TX: 136-174 / 200-260 / 400-520 MHz
RX: 65-108 / 136-174 / 200-260 / 400-520 MHz
Tuning steps:? KHz
Frequency stability:? ppm
Mode:TX: FM / NFM
RX: FM / NFM / WFM
Channels / memory management:128 regular
Repeater shift / offset:Freely programmable
Power supply:7.4 VDC (Li-Ion battery pack)
Current drain / power consumption:RX: ? mA
TX: ? A
Antenna impedance / connector:50 ohm / SMA
Dimensions (W*H*D):60*112*35 mm (2.36*4.41*1.38")
Weight:? g (? oz)
Other features: CTCSS/PL and DCS. DTMF. VOX. LED flashlight.
Roger beep. PC-programmable.




RECEIVER SECTION
Receiver system:?
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? mW at ?% distortion / ? ohm
External speaker connector:




TRANSMITTER SECTION
RF output power:

HighLow
2 m:8 W? W
1.25 m:? W? W
70 cm:8 W? W
Modulation system:
Max FM deviation (Factory set):FM: ±5 KHz
NFM: ±2.5 KHz
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / ?-pin




MISCELLANEOUS
Manufactured:China, 2019-202x
Additional info:
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
- -
