Baofeng UV-5RTP

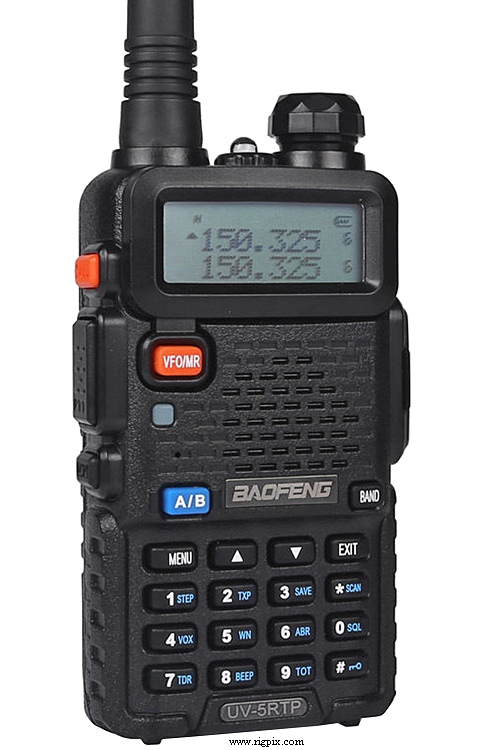

A picture of Baofeng UV-5RTP

SPECIFICATIONS

GENERAL
Type:Amateur VHF/UHF transceiver
Frequency range: TX: 136-174 / 400-520 MHz
RX: 65-108 / 136-174 / 400-520 MHz
Tuning steps:2.5 / 5 / 6.25 / 10 / 12.5 / 25 KHz
Frequency stability:? ppm
Mode:TX: FM / NFM
RX: FM / NFM / WFM
Channels / memory management:128 regular
Repeater shift / offset:Freely programmable
Power supply:7.4 VDC (Li-Ion battery pack)
Current drain / power consumption:RX: ? mA
TX: 1.5 A @ 4 W
Antenna impedance / connector:50 ohm / SMA
Dimensions (W*H*D):52*100*32 mm (2.05*3.94*1.26")
Weight:250 g (8.82 oz), with battery and antenna
Other features:CTCSS/PL and DCS. VOX. LED flashlight.




RECEIVER SECTION
Receiver system:?
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? mW at ?% distortion / ? ohm
External speaker connector:




TRANSMITTER SECTION
RF output power:

HighMidLow
2 m:8 W4 W1 W
70 cm:8 W4 W1 W
Modulation system:
Max FM deviation (Factory set):FM: ±5 KHz
NFM: ±2.5 KHz
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / ?-pin
Microphone input level:? mV




MISCELLANEOUS
Manufactured:China, 201x-201x
Additional info:
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
- -
