Icom UX-98

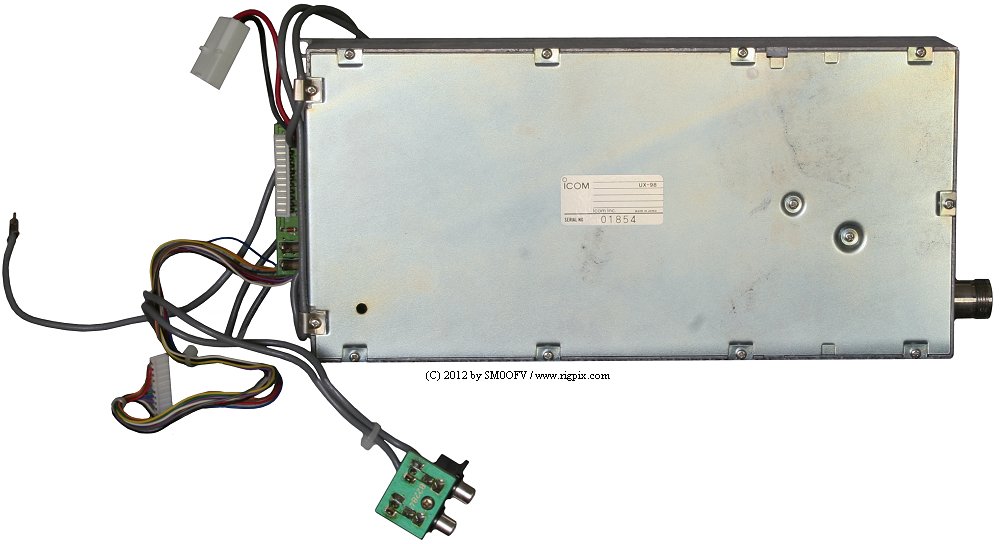

A picture of Icom UX-98

SPECIFICATIONS

GENERAL
Type:UHF band unit
Frequency range: TX: 2400-2450 MHz (13 cm)
RX: 2400-2450 MHz (13 cm)
Tuning steps:? KHz
Frequency stability:±? ppm
Mode:FM / SSB / CW (ATV with optional TV-970)
Channels / memory management:
Repeater shift / offset:±
Power supply:13.8 VDC ±15%
Current drain / power consumption:RX: 3-3.5 A
TX: Max 4.5 A
Antenna impedance / connector:50 ohm / ?
Dimensions (W*H*D):123*57*250 mm (4.84*2.24*9.84")
Weight:1.8 Kg (3.97 lb)
Other features:




RECEIVER SECTION
Receiver system: ? conversion superheterodyne
Sensitivity:
Selectivity:
Image rejection:




TRANSMITTER SECTION
RF output power:

Pwr
13 cm:0.2-1 W
Modulation system:
Max FM deviation (Factory set):±5 KHz
Spurious emissions:Better than -? dB




MISCELLANEOUS
Manufactured:Japan, 1990-199x (Discontinued)
Additional info: New price 1994 in Sweden: SEK 15443:-
Related documents:User manual (1.2 MB)
Modifications and fixes:
Reviews:
Applicable radios: IC-970
IC-970A
IC-970D
IC-970E
IC-970H
IC-970M
A side view picture of Icom UX-98
A bottom view picture of Icom UX-98
