| GENERAL |

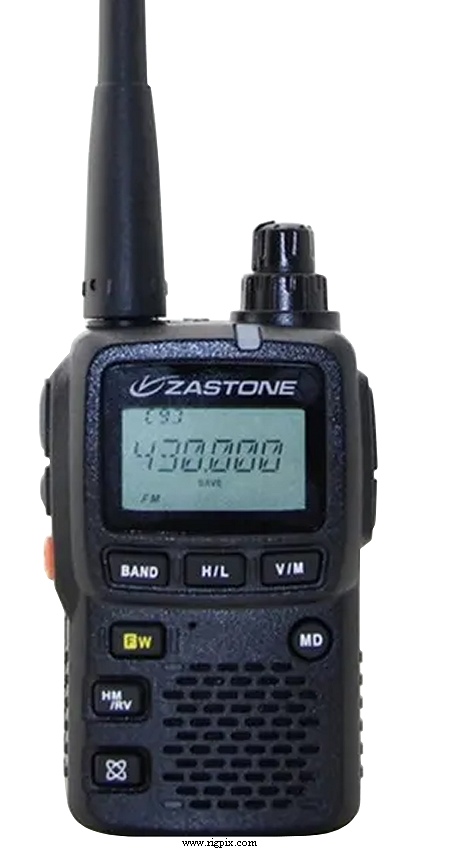

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
TX: 144-148 / 430-450 MHz (136-174 / 420-470 MHz)
RX: 0.5-999 MHz
|
| Tuning steps: | 5 / 9 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 KHz |
| Frequency stability: | ±5 ppm @ -20 to +60°C (-4 to +140°F) |
| Mode: | TX: FM
RX: AM / FM / WFM |
| Channels / memory management: |
1300 regular
100 band limit
Non-volatile EEPROM storage
Scanning
|
| Repeater shift / offset: | Programmable |
| Power supply: | 3.6 VDC |
| Current drain / power consumption: | RX: ? mA
TX: Max ? A |
| Antenna impedance / connector: | 50 ohm / SMA female |
| Dimensions (W*H*D): | 47*81*23 mm (1.85*3.19*0.9") |
| Weight: | 132 g (4.66 oz) |
| Other features: |
CTCSS/PL and DCS with tone scan. DTMF. WIRES and ARS.
Twin RX.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne (AM/FM)
1st IF: 47.25 MHz
2nd IF: 450 KHz
Triple conversion superheterodyne (WFM)
1st IF: 45.8 MHz
2nd IF: 10.7 MHz
3rd IF: 1 MHz
|
| Sensitivity: | Ham bands: 0.18 uV (12 dB SINAD) |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 100 mW at 5% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Low 3 | Low 2 | Low 1 |
|---|
| 2 m: | 3 W | 2 W | 1.5 W | 1 W |
| 70 cm: | 3 W | 2 W | 1.5 W | 1 W |
|
| Modulation system: | Variable reactance |
| Max AM modulation (Factory set): | No AM |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 2 Kohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2015-201x (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
