| GENERAL |

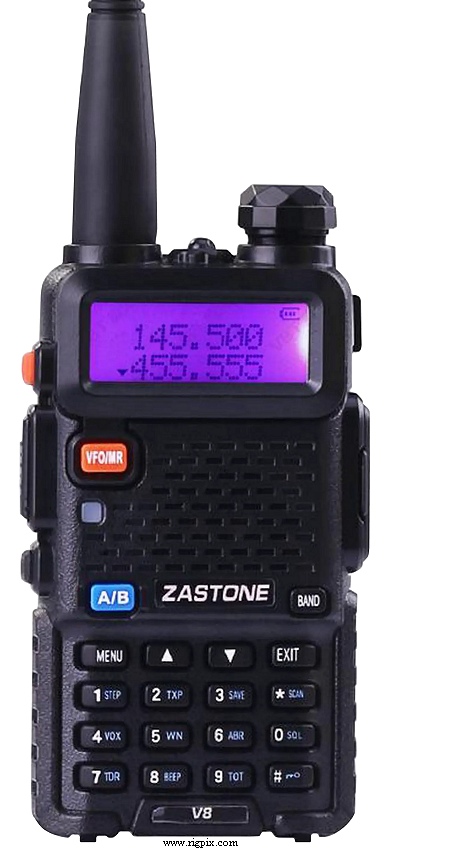

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
TX: 136-174 / 400-520 MHz
RX: 65-108 / 136-174 / 400-520 MHz
|
| Tuning steps: | 2.5 / 5 / 6.25 / 10 / 12.5 / 25 KHz |
| Frequency stability: | ±2.5 ppm (No temperature reference) |
| Mode: | TX: FM / NFM
RX: FM / NFM / WFM |
| Channels / memory management: |
128 regular
Non-volatile EEPROM storage
Scanning
|
| Repeater shift / offset: | Programmable |
| Power supply: | 7.4 VDC (Li-Ion battery pack) |
| Current drain / power consumption: | RX: ? mA
TX: Max 1.6 A |
| Antenna impedance / connector: | 50 ohm / SMA male |
| Dimensions (W*H*D): | 52*100*32 mm (2.05*3.94*1.26") |
| Weight: | 250 g (8.82 oz), with battery and antenna |
| Other features: |
CTCSS/PL and DCS. DTMF. 2-tone/5-tone. 1750 Hz tone burst. VOX.
LED flashlight. Emergency alert. Roger beep. Three selectable backlite
colors. Scrambler. Voice prompt. PC programmable.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
?
|
| Sensitivity: | 0.18 uV (12 dB SINAD) |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 1 W at 10% distortion / ? ohm |
| External speaker connector: | TRS "Subminijack" (2.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Low |
|---|
| 2 m: | 5 W | 1 W |
| 70 cm: | 4 W | 1 W |
|
| Modulation system: | |
| Max AM modulation (Factory set): | No AM |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / TRS "Minijack" (3.5 mm) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2013-201x (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
