| GENERAL |

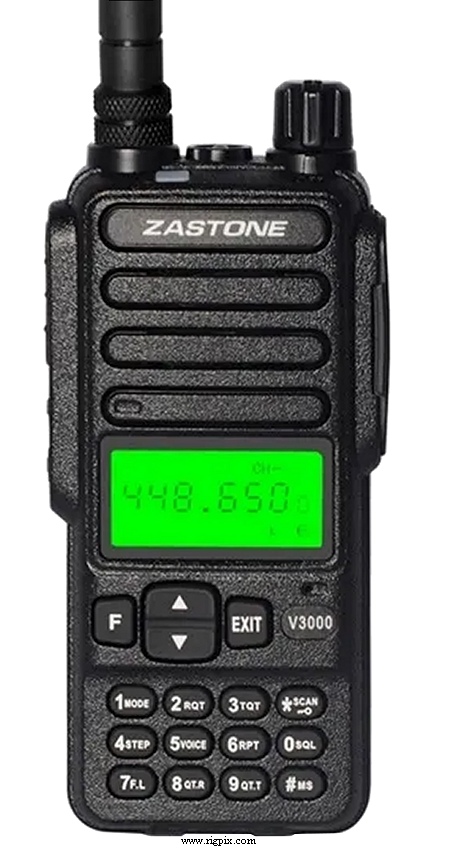

| Type: | Amateur UHF transceiver |
| Frequency range: |
TX: 400-470 MHz
RX: 400-470 MHz
|
| Tuning steps: | 5 / 10 / 12.5 / 25 KHz |
| Frequency stability: | ±? ppm |
| Mode: | FM / NFM |
| Channels / memory management: |
128 regular
Non-volatile EEPROM storage
Scanning
|
| Repeater shift / offset: | Programmable |
| Power supply: | 7.4 VDC (Li-Ion battery pack) |
| Current drain / power consumption: | RX: ? mA
TX: Max ? A |
| Antenna impedance / connector: | 50 ohm / SMA |
| Dimensions (W*H*D): | 62*138*37 mm (2.44*5.43*1.46") |
| Weight: | ? g (? oz) |
| Other features: |
CTCSS/PL and DCS. Scrambler. VOX. IP66 waterproof.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
?
|
| Sensitivity: | 0.25 uV (12 dB SINAD) |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | FM: 70 dB (Adjacent channel)
NFM: 60 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 500 mW at 10% distortion / ? ohm |
| External speaker connector: | TRS "Subminijack" (2.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Mid | Low |
|---|
| 70 cm: | 8 W | ? W | ? mW |
|
| Modulation system: | |
| Max AM modulation (Factory set): | No AM |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -65 dB |
| Microphone impedance / connector: | ? ohm / TRS "Minijack" (3.5 mm) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2017-201x (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
CNB-12L
|
Li-Ion battery pack. 7.4 V, 4000 mAh
|
|
