| GENERAL |

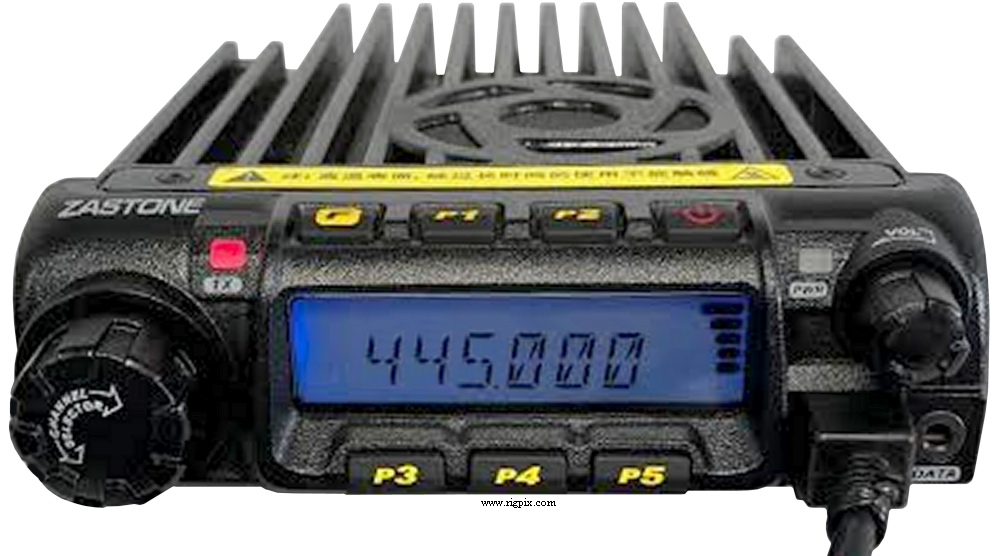

| Type: | Amateur UHF transceiver |
| Frequency range: |
TX: 400-490 MHz
RX: 400-490 MHz
|
| Tuning steps: | 5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 KHz |
| Frequency stability: | ±2.5 ppm @ -20 to +60°C (-4 to +140°F) |
| Mode: | FM / NFM |
| Channels / memory management: |
199 regular
Non-volatile EEPROM storage
Scanning
|
| Repeater shift / offset: | Programmable |
| Power supply: | 13.8 VDC ±15% ("T" connector on pigtail) |
| Current drain / power consumption: | RX: ? mA
TX: Max ? A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 145*47*190 mm (5.7*1.85*7.48") |
| Weight: | 1.2 Kg (2.64 lb) |
| Other features: |
CTCSS/PL and DCS. 1750 Hz call tone. PC programmable and more...
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
?
|
| Sensitivity: |
FM: 0.25 uV (No SINAD reference)
NFM: 0.35 uV (No SINAD reference)
|
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | More than 60 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Mid | Low |
|---|
| 70 cm: | 45 W | 25 W | 10 W |
|
| Modulation system: | |
| Max AM modulation (Factory set): | No AM |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 8-pin (Modular) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2014-201x (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
