| GENERAL |

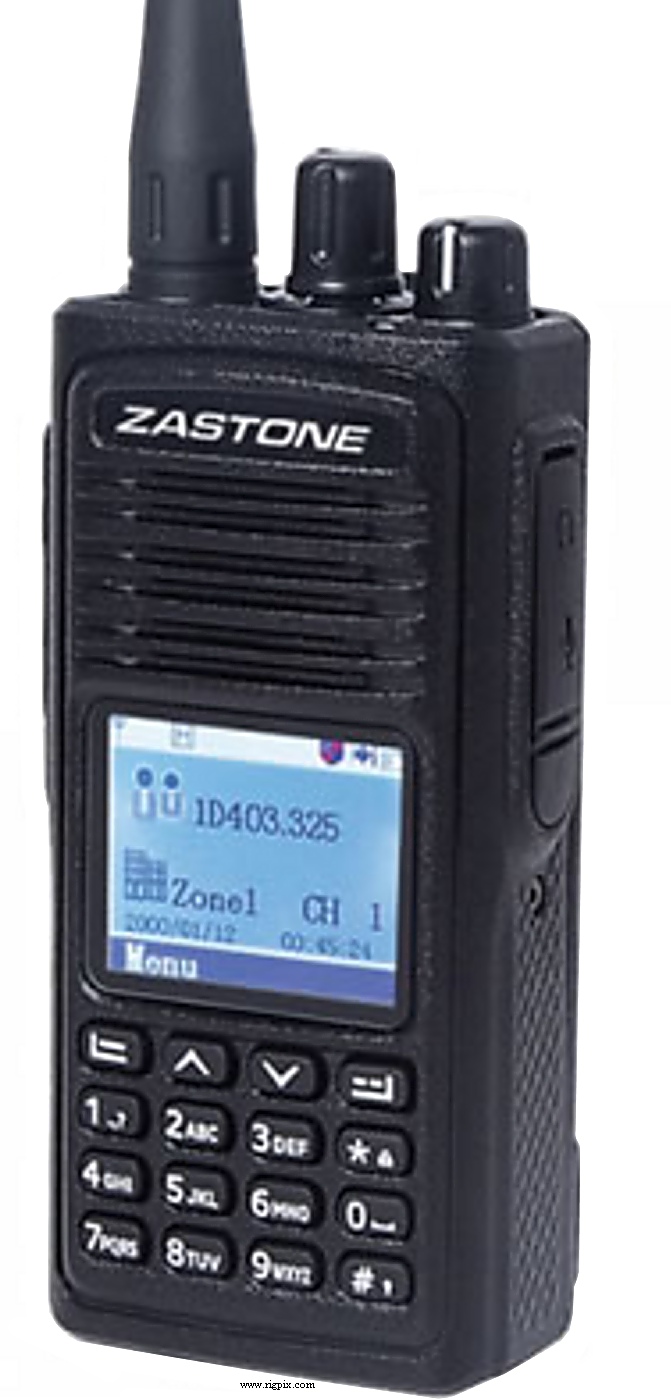

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
TX: 136-174 / 400-480 MHz
RX: 136-174 / 400-480 MHz
|
| Tuning steps: | ? KHz |
| Frequency stability: | ±1.5 ppm @ -30 to +60°C (-22 to +140°F) |
| Mode: | FM / NFM / DV (DMR) |
| Channels / memory management: |
1000 regular
|
| Repeater shift / offset: | Programmable |
| Power supply: | 7.4 VDC (Li-Ion battery pack) |
| Current drain / power consumption: | RX: ? mA
TX: Max ? A |
| Antenna impedance / connector: | 50 ohm / SMA (Male) |
| Dimensions (W*H*D): | 62*132*38 mm (2.4*5.2*1.5") |
| Weight: | 300 g (10.6 oz), with battery |
| Other features: |
CTCSS/PL and DCS. Voice prompt. DTMF.
DMR Tier I & II compliant. SMS and voice encryption. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
?
|
| Sensitivity: |
FM: 0.22 uV (12 dB SINAD)
DMR: 0.3 uV (BER 5%)
|
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | 60 dB (12.5 KHz adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 1 W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Low |
|---|
| VHF: | 5 W | 2 W |
| UHF: | 5 W | 2 W |
|
| Modulation system: |
FM: ?
DMR: 4FSK
|
| Max AM modulation (Factory set): | No AM |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -30 dBm |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2018-202x |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
