| GENERAL |

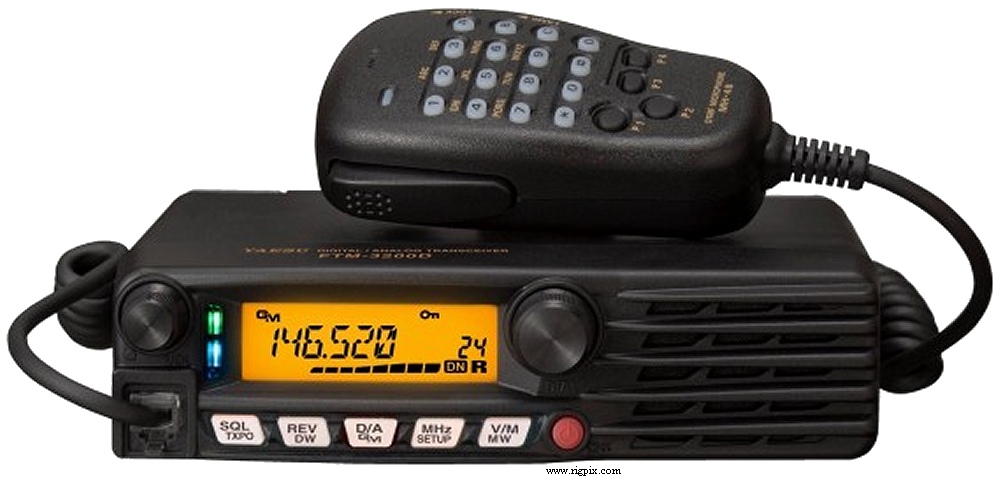

| Type: | Amateur VHF transceiver |
| Frequency range: |
USA
TX: 144-148 MHz
RX: 136-174 MHz
|
| Tuning steps: | 5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 KHz |
| Frequency stability: | ±2.5 ppm @ -20 to +60°C (-4 to +140°F) |
| Mode: | TX: FM / NFM / DV (C4FM FDMA, 9.6 Kbps)
RX: FM / NFM / DV (C4FM FDMA, 9.6 Kbps) |
| Channels / memory management: |
199 regular with alpha tags (8 characters)
1 home
10 NOAA weather channels
10 scan edge (PMS)
Priority function
|
| Repeater shift / offset: | ±600 KHz (Default, programmable) |
| Power supply: | 13.8 VDC ±15% ("T" connector on pigtail) |
| Current drain / power consumption: | RX: 500-700 mA
TX: Max 12 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 154*43*155 mm (6.06*1.69*6.1") |
| Weight: | 1.3 Kg (2.86 lb) |
| Other features: |
CTCSS/PL and DCS with tone search. AMS. ARS. Data cloning. WiRES-X.
Voltmeter.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 47.25 MHz
2nd IF: 450 KHz
|
| Sensitivity: |
FM 144-148 MHz: 0.2 uV (12 dB SINAD)
NFM 144-148 MHz: 0.22 uV (12 dB SINAD)
DV 144-148 MHz: 0.22 uV (BER 1%)
|
| Selectivity: | 12 KHz (-6 dB)
28 KHz (-60 dB) |
| Image rejection: | |
| AF output power / speaker: | 3 W at 10% distortion / ? ohm |
| External speaker connector: | 3.5 mm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Mid | Low |
|---|
| 2 m: | 65 W | 30 W | 5 W |
|
| Modulation system: | FM: Variable reactance
DV: 4FSK/C4FM |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 2 Kohm / 6-pin (Modular) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 2016-201x (Discontinued) |
| Additional info: | Not compatible with HRI-200 (WiRES-X) |
| Related documents: |
User manual (6.2 MB)
Advanced manual (2.2 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
FP-1023
FP-1030A
MH-42C6J
MH-48A6JA
MLS-100
|
AC power supply. 13.8 VDC, 23 A (USA only)
AC power supply. 13.8 VDC, 25 A
Hand microphone
Hand microphone with DTMF keypad
External speaker
|
|
