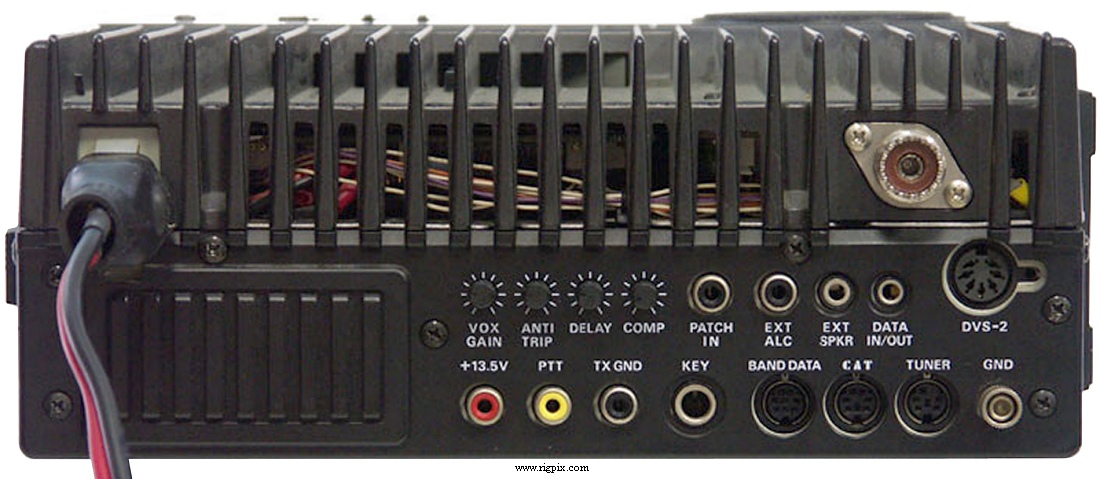

| GENERAL |
| Type: | Amateur HF transceiver |
| Frequency range: |
TX: 10-160 m + WARC
RX: 0.1-30 MHz
|
| Tuning steps: | 10 / 100 Hz |
| Frequency stability: | ±10 ppm @ -10 to +50°C (14 to 122°F)
±2 ppm option (TCXO-3) |
| Mode: | AM / FM / SSB / CW |
| Channels / memory management: |
30 regular
1 scan edge pair (PMS)
RAM storage with lithium battery backup
|
| Repeater shift / offset: | ±100 KHz |
| Power supply: | 13.8 VDC ±10% (6-pin Molex connector) |
| Current drain / power consumption: | RX: 1.5 A (Squelched)
TX: Max 20 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 238*93*243 mm (9.37*3.66*9.57") |
| Weight: | 5.6 Kg (12.35 lb) |
| Other features: |
NB. VOX. Notch filter. Iambic keyer. IF shift. Attenuator.
CTCSS/PL encoder. CAT control.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 70.455 MHz
2nd IF: 455 KHz
|
| Sensitivity: |
AM (6 KHz, 10 dB S/N, IPO off)
0.25-0.5 MHz: 16 uV
0.5-1.8 MHz: 8 uV
1.8-30 MHz: 1 uV
FM (12 dB SINAD, IPO off)
28-30 MHz: 0.5 uV
SSB/CW (2.4 KHz, 10 dB S/N, IPO off)
0.25-0.5 MHz: 2 uV
0.5-1.8 MHz: 1 uV
1.8-30 MHz: 0.25 uV
|
| Selectivity: |
AM wide:
6 KHz (-6 dB)
18 KHz (-60 dB)
SSB/CW wide/AM narrow (No options):
2.2 KHz (-6 dB)
4.2 KHz (-60 dB)
SSB/CW wide/AM narrow (With optional YF-101):
2.4 KHz (-6 dB)
4.2 KHz (-60 dB)
CW narrow (With optional YF-100):
500 Hz (-6 dB)
1.8 KHz (-60 dB)
CW narrow (With optional XF-455K-251-01):
250 Hz (-6 dB)
700 Hz (-60 dB)
|
| Image rejection: | 70 dB |
| AF output power / speaker: | 1.5 W at 10% distortion / 4 ohm |
| External speaker connector: | 3.5 mm, 4-8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| Max pwr |
|---|
| AM: | 25 W |
| FM: | 100 W |
| SSB (PEP): | 100 W |
| CW: | 100 W |
|
| Modulation system: |
AM: Low level (Early stage)
FM: Variable reactance
SSB: Balanced, filtered carrier
|
| Max FM deviation (Factory set): | ±2.5 KHz |
| Spurious emissions: | Better than -40 dB |
| Microphone impedance / connector: | 500-600 ohm / 8-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1992-199x (Discontinued) |
| Additional info: | New price 1992 in Sweden: SEK 13216:- |
| Related documents: |
User manual (26.7 MB)
Service manual (18.1 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
ATU-2
DVS-2
FC-800
FIF-232C
FP-800
LL-5
MD-1C8
MH-1B8
MMB-20
SP-6
TCXO-3
XF-455K-251-01
YF-77ST
YF.100
YF-101
|
Internal automatic antenna tuner
Digital voice recording unit
External automatic antenna tuner
CAT system interface
AC power supply
Phone patch unit. Installas in SP-6
Desk microphone
Hand microphone
Mobile mounting bracket
External speaker with filters
High-stability crystal unit. ±2 ppm
CW narrow filter. 250 Hz
Lightweight headphones
CW narrow filter. 500 Hz
SSB filter. 2.4 KHz
|
|
