| GENERAL |
| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
Europe
TX: 144-146 / 430-440 MHz
RX: 108-520 / 700-1000 MHz
USA
TX: 144-148 / 430-450 MHz
RX: 108-520 / 700-1000 MHz (Cellular blocked)
|
| Tuning steps: | 5 / 10 / 12.5 / 15 / 20 / 25 / 50 KHz |
| Frequency stability: | ±5 ppm @ 010 to +60°C (14 to 140°F) |
| Mode: | TX: FM / NFM
RX: AM / FM / NFM |
| Channels / memory management: |
512 regular with alpha tags in 10 banks
5 home
10 scan edge pairs (PMS)
Priority function
6 hyper
Non-volatile EEPROM storage
|
| Repeater shift / offset: | ±0-99.95 MHz in 50 KHz steps |
| Power supply: | 13.8 VDC ±15% ("T" connector on pigtail) |
| Current drain / power consumption: | RX: 500 mA (Squelched)
TX: Max 8.5 A |

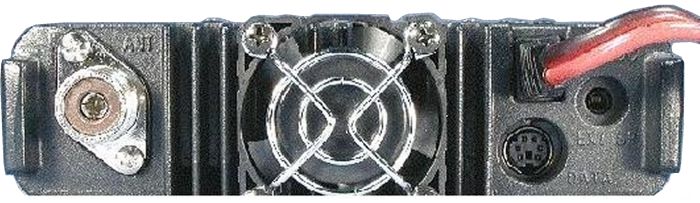

| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 140*42*168 mm (5.51*1.65*6.61") |
| Weight: | 1 Kg (2.2 lb) |
| Other features: |
CTCSS/PL and DCS with tone search. DTMF. 1K2/9K6 packet jack.
ARTS. WIRES internet. Cross-band repeater. Data cloning. Twin RX.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 45.05 MHz (Main RX) - 47.25 MHz (Sub RX)
2nd IF: 450 KHz
|
| Sensitivity: | Better than 0.2 uV (12 dB SINAD), ham bands only |
| Selectivity: | NFM: 8 KHz (-6 dB)
30 KHz (-60 dB) |
| Image rejection: | |
| AF output power / speaker: | 2 W at 5% distortion / 8 ohm |
| External speaker connector: | 3.5 mm, 4-16 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Low 3 | Low 2 | Low 1 |
|---|
| 2 m: | 50 W | 20 W | 10 W | 5 W |
| 70 cm: | 35 W | 20 W | 10 W | 5 W |
|
| Modulation system: | Variable reactance |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 2 kohm / 6-pin (Modular) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 2003-2016 (Discontinued) |
| Additional info: | |
| Related documents: | User manual (800 Kb) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
CT-39A
FP-1023
FP-1030A
MEK-2
MH-42B6JS
MH-48B6JS
MLS-100
MMB-36
YSK-8900
|
Packet interface cable
AC power suppply. 13.8 VDC, 23 A (USA only)
AC power suppply. 13.8 VDC, 25 A
Microphone extension kit
Hand microphone
Hand microphone with DTMF keypad
External speaker
Mobile mounting bracket
Front panel separation kit
|
|
