| GENERAL |

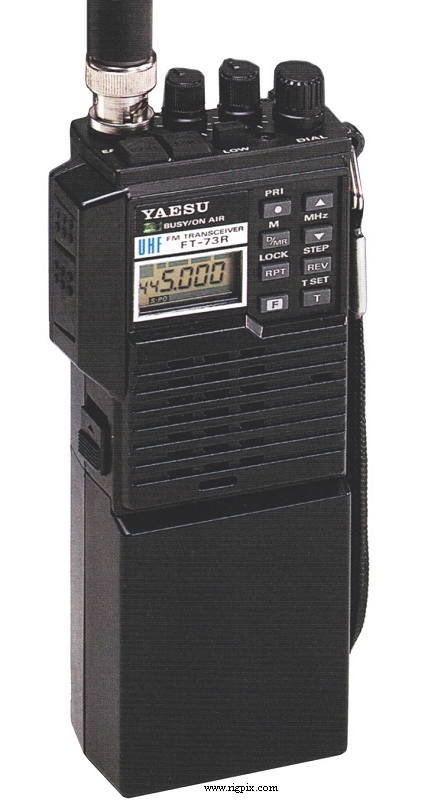

| Type: | Amateur UHF transceiver |
| Frequency range: |
Europe
TX: 430-440 MHz
RX: 430-440 MHz
USA
TX: 440-450 MHz
RX: 440-450 MHz
|
| Tuning steps: | 12.3 / 25 KHz |
| Frequency stability: | Better than ±5 ppm (No temperature reference) |
| Mode: | FM |
| Channels / memory management: |
10 regular, of which channel 0 to 6 can store odd splits
1 call
1 priority
RAM storage with backup battery
|
| Repeater shift / offset: | Europe: ±1.6 or 7.6 MHz
USA: ±5 MHz |
| Power supply: | 6-15 VDC |
| Current drain / power consumption: | RX: 19-150 mA
TX: Max 1.6 A |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 55*139*32 mm (2.16*5.47*1.26"), with FNB-10 |
| Weight: | 430 g (15.17 oz), with FNB-10 |
| Other features: | 1750 Hz repeater tone (Europe). CTCSS/PL option. Cloning function. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 17.2 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.25 uV (12 dB SINAD) |
| Selectivity: | 60 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 400 mW at 5% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Low |
|---|
| 70 cm: | 2-5 W | 200-500 mW |
NB! Output levels depend on voltage/battery pack
|
| Modulation system: | Variable reactance |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 2 Kohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1986-199x (Discontinued) |
| Additional info: | New price 1988 in Sweden: SEK 3180:- |
| Related documents: |
User manual (2 MB)
Service manual (6.6 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
CSC-22
CSC-23
CSC-24
CSC-25
CSC-26
FBA-9
FBA-10
FNB-9
FNB-10
FNB-11
FTS-12
FTT-4
MH-12A2B
MH-18A2B
MMB-32
NC-18B
NC-18C
NC-27B
NC-27C
NC-28B
NC-28C
NC-29
PA-6
YHA-46
|
Soft case for use with FNB-9 and FBA-9
Soft case for use with FNB-10 and FBA-10
Soft case for use with FNB-11
Soft case for use with FTT-4, FNB-10 and FBA-10
Soft case for use with FTT-4 and FNB-11
Battery case (6*LR03/AAA dry cells)
Battery case (6*LR6/AA dry cells)
NiCd battery pack. 7.2 V, 200 mAh
NiCd battery pack. 7.2 V, 600 mAh
NiCd battery pack. 12 V, 600 mAh
CTCSS/PL tone unit
DTMF keypad
Speaker-microphone
Miniature speaker-microphone
Mobile hanger bracket
Wall charger for FNB-11/FNB-12. 117 VAC
Wall charger for FNB-11/FNB-12. 220-234 VAC
Wall charger for FNB-9. 117 VAC
Wall charger for FNB-9. 220-234 VAC
Wall charger for FNB-10/FNB-17. 117 VAC
Wall charger for FNB-10/FNB-17. 220-234 VAC
Desktop quick charger for all FNB packs except FNB-14
Mobile DC adapter/charger for 7.2 V packs
Rubber flex antenna
|
|
