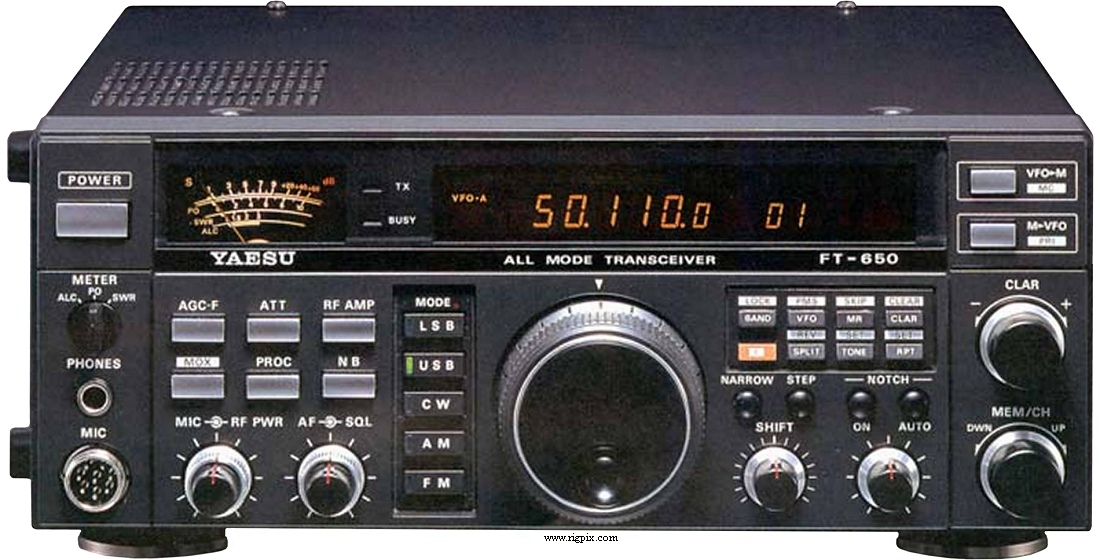

| GENERAL |
| Type: | Amateur HF/VHF transceiver |
| Frequency range: |
TX: 24.5-25.0 / 28.0-29.7 / 50-54 MHz
RX: 24.5-56 MHz
|
| Tuning steps: | 10 / 100 Hz, 2.5 / 5 / 10 / 12.5 / 15 / 20 / 25 / 500 KHz |
| Frequency stability: |
AM/FM: ±10 ppm @ 0 to 50°C (32 to 122°F)
SSB/CW: ±2 ppm @ 0 to 50°C (32 to 122°F)
|
| Mode: | AM / FM / SSB / CW |
| Channels / memory management: |
99 regular
2 scan edge pairs (PMS)
2 priority
RAM storage with lithium battery backup
|
| Repeater shift / offset: |
10 m: ±100 KHz
6 m: ±1 MHz
(Defaults, programmable)
|
| Power supply: | 13.8 VDC (6-pin Molex)
(Mains option) |
| Current drain / power consumption: | RX: 2 A
TX: Max 20 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 285*110*262 mm (11.22*4.33*10.31") |
| Weight: | 7 Kg (15.43 lb) |
| Other features: | NB. IF shift. Attenuator. Notch filter. CAT control. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne (FM)
1st IF: 13.69 MHz
2nd IF: 455 KHz
Triple conversion superheterodyne (AM/SSB/CW)
1st IF: 13.69 MHz
2nd IF: 455 KHz
3rd IF: 8.215 MHz
|
| Sensitivity: |
AM: 0.5 uV (10 dB S/N)
FM: 0.16 uV (12 dB SINAD)
SSB/CW: 0.125 uV (10 dB S/N)
|
| Selectivity: |
SSB/CW/AM narrow
2.4 KHz (-6 dB)
4.5 KHz (-60 dB)
AM normal
6 KHz (-6 dB)
18 KHz (-50 dB)
FM normal
15 KHz (-6 dB)
30 KHz (-40 dB)
FM narrow
8 KHz (-6 dB)
30 KHz (-40 dB)
CW narrow (Optional)
600 Hz (-6 dB)
1.2 KHz (-60 dB)
|
| Image rejection: | 60 dB |
| AF output power / speaker: | 1.5 W at 5% distortion / 8 ohm |
| External speaker connector: | 3.5 mm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| Pwr |
|---|
| AM: | 2.25 W |
| FM: | 10-100 W |
| SSB (PEP): | 10-100 W |
| CW: | 10-100 W |
|
| Modulation system: | AM: Low-level (Early stage)
FM: Variable reactance
SSB: Balanced, filtered carrier |
| Max FM deviation (Factory set): | Normal: ±5 KHz
Narrow: ±2.5 KHz |
| Spurious emissions: | Better than -40 dB |
| Microphone impedance / connector: | 200 ohm to 10 Kohm (600 ohm nominal) / 8-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 199x-199x (Discontinued) |
| Additional info: | |
| Related documents: | User manual (3.8 MB) |
| Modifications and fixes: | |
| Reviews: | QST: October 1991 |
| Options / Accessories: |
DVS-2
E-DC-3
FIF-232C
FP-22
FTS-8
MD-1C8
SP-5
XF-455M601-01
|
Digital voice recording system
Double-fused DC power cable
CAT system interface
Internal switch mode power supply
CTCSS/PL encoder/decoder unit
Desk microphone
External speaker with filters
CW narrow filter. 600 Hz
|
|
