| GENERAL |

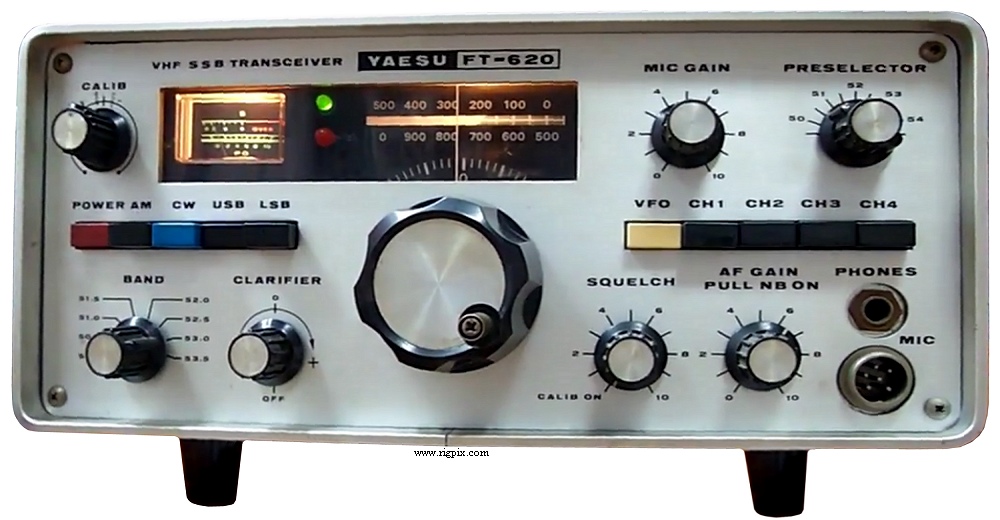

| Type: | Amateur VHF transceiver |
| Frequency range: |
50-54 MHz (6 m) in 8 bands
50.0-50.5 MHz
50.5-51.0 MHz
51.0-51.5 MHz
51.5-52.0 MHz
52.0-52.5 MHz
52.5-53.0 MHz
53.0-53.5 MHz
53.5-54.0 MHz
|
| Tuning steps: | Continuous |
| Frequency stability: | ±? ppm |
| Mode: | M / SSB / CW |
| Channels / memory management: |
4 optional
XTAL controlled
|
| Repeater shift / offset: | No |
| Power supply: | Mains: 100 / 110 / 117 / 200 / 220 / 234 VAC
or 12.5-14 VDC
The AC/DC socket is a 4-pin metal locking ring connector(!) |
| Current drain / power consumption: | RX: 300 mA (DC) or 16 VA (Mains)
TX: 2 A (DC) or 60 VA (Mains) |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 280*125*295 mm (11*4.92*11.61") |
| Weight: | 8 Kg (17.64 lb) |
| Other features: | NB. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 14-14.5 MHz
2nd IF: 9 MHz
|
| Sensitivity: |
AM: <1 uV (10 dB S+N/N)
SSB/CW: 0.5 uV (10 dB S+N/N)
|
| Selectivity: |
AM (With optional AM filter)
6 KHz (-6 dB)
10 KHz (-60 dB)
SSB/CW
2.5 KHz (-6 dB)
4.1 KHz (-60 dB)
|
| Image rejection: | 60 dB |
| AF output power / speaker: | 2 W at 10% distortion / 4 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| Max pwr |
|---|
| AM: | ~4 W (8 W input) |
| SSB (PEP): | ~10 W (20 W input) |
| CW: | ~10 W (20 W input) |
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 10 Kohm / 6-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1972-1975 (Discontinued) |
| Additional info: | |
| Related documents: | User manual (10.6 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
VC-75
XF-90B
YM-86
?
|
External mic compressor and VOX unit
AM crystal filter. 6 KHz (-6 dB)
Hand microphone. Hi-Z
100 KHz marker oscillator
|
|
