| GENERAL |

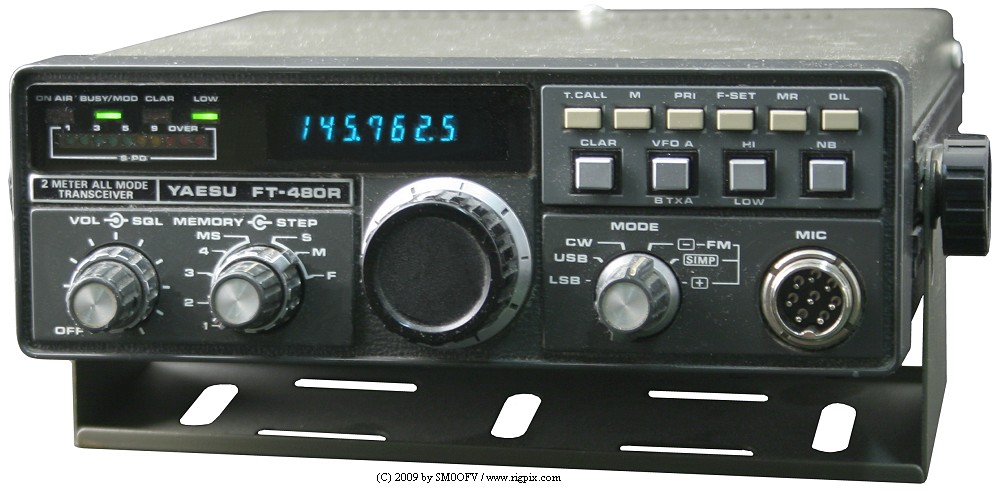

| Type: | Amateur VHF transceiver |
| Frequency range: |
Europe
TX: 144-146 MHz
RX: 144-146 MHz
USA
TX: 143.5-148.5 MHz
RX: 143.5-148.5 MHz
|
| Tuning steps: |
Europe
10 / 100 Hz, 1 / 12.5 / 25 KHz
USA
10 / 100 Hz, 1 / 20 / 100 KHz
|
| Frequency stability: | ? ppm |
| Mode: | FM / SSB / CW |
| Channels / memory management: |
4 regular
1 priority
RAM storage. External DC required for memory retention!
|
| Repeater shift / offset: | ±600 KHz |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | RX: 500 mA
TX: Max 3 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 180*60*240 mm (7.09*2.36*9.45") |
| Weight: | 2.9 Kg (6.39 lb) |
| Other features: | NB, RIT |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.81 MHz
2nd IF: 455 KHz
|
| Sensitivity: |
FM: 0.35 uV for 20 dB QS
SSB/CW: 0.5 uV for 20 dB S/N
|
| Selectivity: |
FM
14 KHz (-6 dB)
25 KHz (-60 dB)
SSB/CW
2.4 KHz (-6 dB)
4.1 KHz (-60 dB)
|
| Image rejection: | Better than 60 dB |
| AF output power / speaker: | 2 W at 10% distortion / 8 ohm |
| External speaker connector: | 3.5 mm, 8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Low |
|---|
| FM: | 10 W | 1 W |
| SSB (PEP): | 30 W (Input) | - |
| CW: | 10 W | 1 W |
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance/connector: | 600 ohm / 8-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1980-198x (Discontinued) |
| Additional info: | New price 1980 in Sweden: SEK 2995:- |
| Related documents: |
User manual (4.7 MB)
Final power module: Mitsubishi M57713
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
FP-80A
FTS-64E
SC-1
YM-34
YM-38
YM-40
|
Power supply. 13.8 VDC, 4.5 A
CTCSS/PL encoder
Station console. For two transceivers
Desk microphone
Desk microphone with up/down buttons
Hand microphone with tone call button
|
|
