| GENERAL |

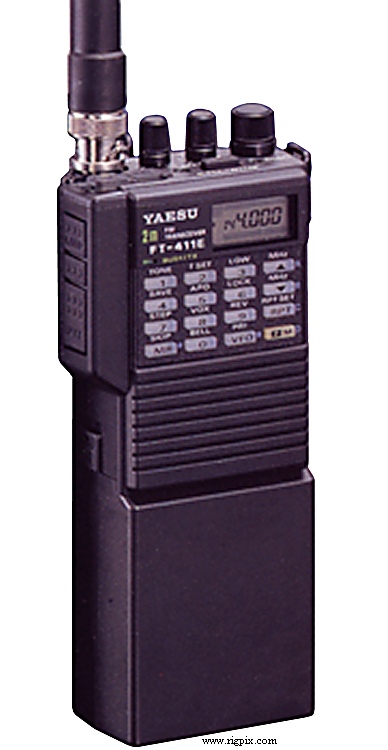

| Type: | Amateur VHF transceiver |
| Frequency range: |
Europe
TX: 144-146 MHz
RX: 140-174 MHz
USA
TX: 144-148 MHz
RX: 140-174 MHz
|
| Tuning steps: | 5 / 10 / 12.5 / 20 / 25 KHz |
| Frequency stability: | ±10 ppm (No temperature reference) |
| Mode: | FM |
| Channels / memory management: |
46 regular
1 call
2 scan edge (PMS)
10 DTMF
RAM storage with lithium battery backup (CR2025)
|
| Repeater shift / offset: | ±600 KHz (Default, programmable) |
| Power supply: | 5.5-15 VDC |
| Current drain / power consumption: | RX: 7-150 mA
TX: Max 1.3 A |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 55*139*32 mm (2.16*5.47*1.26"), with FNB-10 |
| Weight: | 430 g (15.17 oz), with FNB-10 |
| Other features: | VOX. DTMF. 1750 Hz repeater tone (Europe). Cloning. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 21.7 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.16 uV (12 dB SINAD) |
| Selectivity: | 60 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 500 mW at 5% distortion / 8 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
NB! The high power level depends on battery pack/voltage
|
| Modulation system: | Variable rectance |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 2 Kohm / ?-pin |
| Microphone input level: | 25 mV @ 1 KHz for ±4.5 KHz deviation |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1988-19xx (Discontinued) |
| Additional info: | New price 1988 in Sweden: SEK 3245:- |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
CSC-35
CSC-36
CSC-37
CSC-38
FBA-9
FBA-10
FBA-17
FNB-9
FNB-10
FNB-11
FNB-12
FNB-14
FNB-17
FTS-17
MH-12A2B
MH-18A2B
MH-19A2B
MMB-32A
NC-18B
NC-18C
NC-27B
NC-27C
NC-28B
NC-28C
NC-29
NC-34B
NC-34C
PA-6
YH-2
YHA-16
|
Soft case for use with FBA-9/FBA-17/FNB-9/FNB-17
Soft case for use with FBA-10/FNB-10
Soft case for use with FNB-12/FNB-14
Soft case for use with FNB-11
Battery case (Six LR03/AAA)
Battery case (Six LR6/AA)
Compact battery case (Six LR6/AA)
NiCd battery pack. 7.2 V, 200 mAh
NiCd battery pack. 7.2 V, 600 mAh
NiCd battery pack. 12 V, 600 mAh
NiCd battery pack. 12 V, 500 mAh
NiCd battery pack. 7.2 V, 1000 mAh
Compact NiCd battery pack. 7.2 V, 600 mAh
CTCSS/PL tone squelch unit
Speaker-microphone
Compact speaker-microphone
Earpiece/microphone
Mobile hanger bracket
Wall charger (117 VAC). For FNB-11/12
Wall charger (220-234 VAC). For FNB-11/12
Wall charger (117 VAC). For FNB-9
Wall charger (220-234 VAC). FNB-9
Wall charger (117 VAC). For FNB-10/17
Wall charger (220-234 VAC). FNB-10/17
Desktop quick charger for FNB-9/10/11/12/14/17
Wall charger (117 VAC). For FNB-14
Wall charger (220-234 VAC). FNB-14
Mobile DC adapter/charger for FNB-9/10/14/17
Headset
Rubber flex antenna
|
|
