| GENERAL |
| Type: | Amateur VHF transceiver |
| Frequency range: |
Europe
TX: 144-146 MHz
RX: 137-174 MHz
USA
TX: 144-148 MHz
RX: 137-174 MHz
|
| Tuning steps: | 5 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 KHz |
| Frequency stability: | ±10 ppm @ -20 to +60°C (-4 to +140°F) |
| Mode: | FM / NFM |
| Channels / memory management: |
200 regular with alpha tags
1 home
10 scan edge pairs (PMS)
10 NOAA Weather channels (With alert)
Non-volatile EEPROM storage
|
| Repeater shift / offset: | ±600 KHz (Programmable) |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: 300-700 mA
TX: Max 10 A |

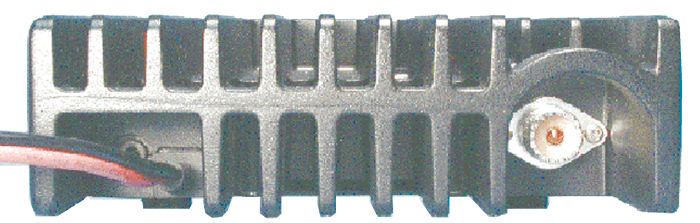

| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 160*50*185 mm (6.3*1.97*7.28") |
| Weight: | 1.8 Kg (3.97 lb) |
| Other features: | CTCSS/PL and DCS. ARS. Dimmer. WIRES linking. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 21.7 MHz
2nd IF: 450 KHz
|
| Sensitivity: | 0.2 uV (12 dB SINAD) |
| Selectivity: | 12 KHz (-6 dB)
28 KHz (-60 dB) |
| Image rejection: | 70 dB |
| AF output power / speaker: | 3 W at 10% distortion / 4 ohm |
| External speaker connector: | 3.5 mm, 4-8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Mid | Low 2 | Low 1 |
|---|
| 2 m: | 65 W | 25 W | 10 W | 5 W |
|
| Modulation system: | Variable reactance |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | 2 Kohm / 6-pin (Modular) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 2003-200x (Discontinued) |
| Additional info: | |
| Related documents: | User manual (723 KB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
FP-1023
FP-1025A
FP-1030A
MH-48A6J
MLS-100
MMB-83
|
Power supply. 13.8 VDC, 25 A (USA only)
Power supply. 13.8 VDC, 25 A
Power supply. 13.8 VDC, 25 A
Hand microphone with DTMF keypad
High-power external speaker
Mobile mounting bracket
|
|
