| GENERAL |

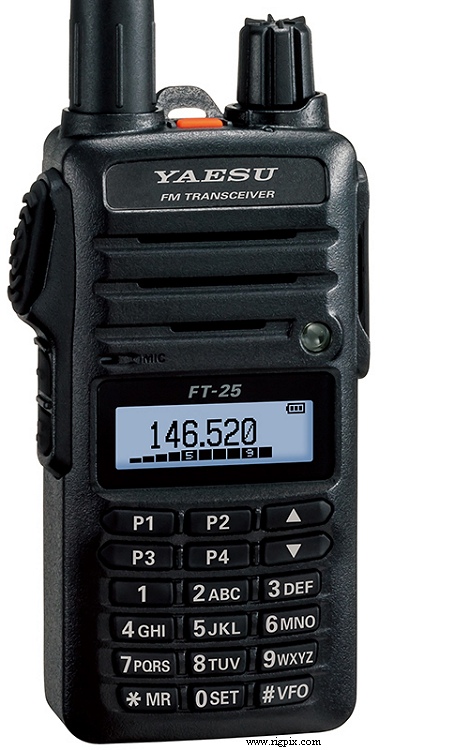

| Type: | Amateur VHF transceiver |
| Frequency range: |
Europe
TX: 144-146 MHz
RX: 65-108 / 136-174 MHz
|
| Tuning steps: | 5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 KHz |
| Frequency stability: | ±5 ppm @ -10 to +60°C (14 to 140°F) |
| Mode: | TX: FM / NFM
RX: FM / NFM / WFM |
| Channels / memory management: |
200 regular with alpha tags
3 home
10 band edge pairs
Non-volatile EEPROM storage
|
| Repeater shift / offset: | ±0.05 to 99.95 MHz in 50 KHz steps |
| Power supply: | 7.4 VDC (Battery pack)
or 6-9 VDC external |
| Current drain / power consumption: | RX: 18-205 mA
TX: Max 1.5 A @ 7.4 VDC |
| Antenna impedance / connector: | 50 ohm / SMA |
| Dimensions (W*H*D): | 52*104*31 mm (2.1*4.1*1.2") |
| Weight: | 260 g (9.17 oz), with SBR-25Li and antenna |
| Other features: | CTCSS/PL and DCS. DTMF. ARTS. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: | Direct conversion |
| Sensitivity: | 140-150 MHz: 0.2 uV (12 dB SINAD) |
| Selectivity: | 12 KHz (-6 dB)
35 KHz (-60 dB) |
| Image rejection: | |
| AF output power / speaker: | 800 mW at 10% distortion / 16 ohm (@ 7.4 VDC) |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Mid | Low |
|---|
| 2 m: | 5 W | 2 W | 500 mW |
|
| Modulation system: | Variable reactance |
| Max FM deviation (Factory set): | FM: ±5 KHz
NFM: ±2.5 KHz |
| Spurious emissions: | Better than -60 dB @ High and Mid power
Better than -40 dB @ Low power |
| Microphone impedance / connector: | 2 Kohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 2017-20xx |
| Additional info: | New price 2017 in Sweden: SEK 995:- |
| Related documents: |
User manual (7.9 MB)
Advanced manual (6.1 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
SAD-20C
SAD-20U
SBH-22
SBR-25Li
SBR-26Li
SCU-35
SCU-36
SHB-18
SRA-16N
SSM-512B
|
AC adapter. 220-240 VAC (Europe except UK)
AC adapter. 220-240 VAC (UK version)
Rapid charger. Requires SAD-20
Li-Ion battery pack. 7.4 V, 1950 mAh
Li-Ion battery pack. 7.4 V, 2500 mAh
USB programming cable
Cloning cable, radio-to-radio
Belt clip, spring loaded
VHF antenna
Mic/earpiece with PTT and VOX
|
|
