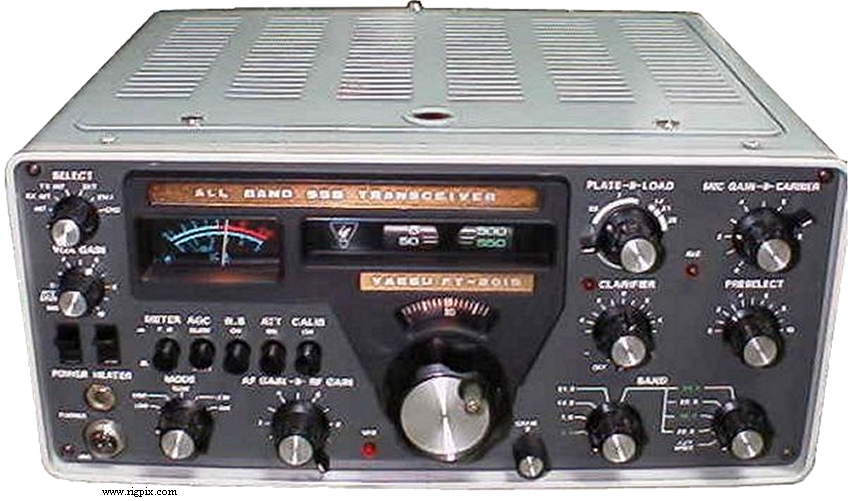

| GENERAL |
| Type: | Amateur HF transceiver |
| Frequency range: |
TX: 10-80 m
RX: 10-80 m +15 MHz (WWV)
|
| Tuning steps: | Analog / continuous |
| Frequency stability: | Less than 100 Hz drift in any 30 minute period |
| Mode: | AM / SSB / CW |
| Channels / memory management: |
2 optional
XTAL controlled
|
| Repeater shift / offset: | No |
| Power supply: | Mains: 100 / 110 / 117 / 200 / 220 / 234 VAC
or 12 VDC
A twelve-prong Amphenol/Cinch-Jones connector
has to be wired for either mains or DC voltage
|
| Current drain / power consumption: | RX: 45 W @ mains (600 mA @ 12 VDC)
TX: Max ? W @ mains (Max ? A @ 12 VDC) |
| Antenna impedance / connector: | 50-75 ohm / SO-239 |
| Dimensions (W*H*D): | 340*153*285 mm (13.4*6.02*11.22") |
| Weight: | 14 Kg (30.9 lb) |
| Other features: | NB. VOX. 25/100 KHz calibrator. Attenuator. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Single conversion superheterodyne
1st IF: 9 MHz
|
| Sensitivity: | 0.3 uV (10 dB S/N) |
| Selectivity: |
AM/SSB/CW
2.4 KHz (-6 dB)
4 KHz (-60 dB)
CW (With optional narrow filter)
600 Hz (-6 dB)
1.2 KHz (-60 dB)
|
| Image rejection: | |
| AF output power / speaker: | 3 W at ?% distortion / External only |
| External speaker connector: | 4 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| Max pwr |
|---|
| AM: | 4 W |
| SSB (PEP): | 10 W |
| CW: | 10 W |
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -40 dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1973-197x (Discontinued) |
| Additional info: | Tube hybrid with 12BY7A driver and a 6JS6C final |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
FV-201
SP-101PB
|
External VFO
External speaker with phone patch
|
|
