| GENERAL |

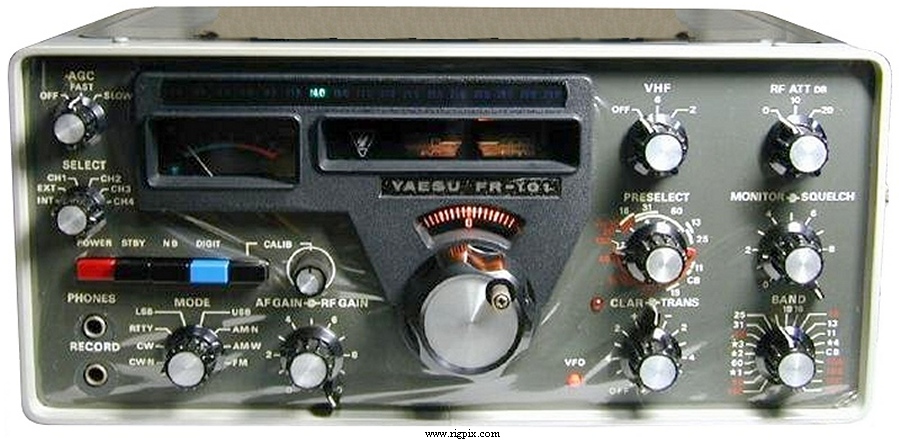

| Type: | HF/VHF receiver |
| Frequency range: |
1.8-30 MHz in 21 bands
| 160 m: | 1.8-2.0 MHz |
| 80 m: | 3.5-4.0 MHz |
| 60 m: | 4.5-5.0 MHz (Optional) |
| 40 m: | 6.9-7.5 MHz |
| 31 m: | 9.5-10.0 MHz (Optional) |
| 25 m: | 11.5-12.0 MHz (Optional) |
| 20 m: | 13.9-14.5 MHz |
| 19 m: | 15.0-15.5 MHz (Optional) |
| 16 m: | 17.5-18.0 MHz (Optional) |
| 15 m: | 20.9-21.5 MHz |
| 13 m: | 21.5-22.0 MHz (Optional) |
| 11 m: | 25.5-26.0 MHz (Optional) |
| CB: | 27.0-27.5 MHz (Optional) |
| 10 m A: | 28.0-28.5 MHz |
| 10 m B: | 28.5-29.0 MHz (Optional) |
| 10 m C: | 29.0-29.5 MHz (Optional) |
| 10 m D: | 29.5-29.9 MHz (Optional) |
| *1: | 4.0-4.5 MHz (Optional) |
| *2: | 5.0-5.2 MHz (Optional) |
| *3: | 7.5-9.0 MHz (Optional) |
| *4: | 22.0-27.0 MHz (Optional) |
Plus internal 6 m and 2 m converter options
|
| Tuning steps: | Analog / continuous |
| Frequency stability: | Within 100 Hz during any 30 minute period after warmup |
| Mode: | AM / SSB / CW / RTTY (FM option) |
| Channels / memory management: |
4 optional
XTAL-controlled
|
| Power supply: | Mains: 100 / 110 / 117 / 200 / 220 / 234 VAC
or 13.5 VDC |
| Current drain / power consumption: | Max ? mA @ 13.8 VDC |
| Antenna impedance / connector: |
50-75 ohm / SO-239 (HF)
50-75 ohm / SO-239 (6 m option)
50-75 ohm / SO-239 (2 m option)
|
| Dimensions (W*H*D): | 340*153*285 mm (13.4*6*11.2") |
| Weight: | 9 Kg (19.8 lb) |
| Other features: | NB. XTAL-calibrator. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 5.5-6 MHz
2nd IF: 3.18 MHz
|
| Sensitivity: |
AM: 1 uV @ 14 MHz
FM: ? uV (12 dB SINAD), with FM-1 option
SSB/CW: 0.3 uV (10 dB S+N/N) @ 14 MHz
|
| Selectivity: |
AM-W (Optional)
6 KHz (-6 dB)
12 KHz (-50 dB)
AM-N/SSB/CW/RTTY
2.4 KHz (-6 dB)
4 KHz (-60 dB)
CW-N (Optional)
600 Hz (-6 dB)
1.5 KHz (-60 dB)
FM (With FM-1 option)
20 KHz (-6 dB)
45 KHz (-50 dB)
|
| Image rejection: | 60 dB |
| AF output power / speaker: | 2 W at 10% distortion / External only |
| External speaker connector: | Phono (RCA), 4 ohm |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 197x-197x (Discontinued) |
| Additional info: | |
| Related documents: | User manual (4.1 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
FC-2
FC-6
FM-1
SP-101B
XF-30B
XF-30C
XF-30D
|
2 m converter
6 m converter
FM unit
Matching speaker. 4 ohm
AM filter, 6 KHz
CW filter, 600 Hz
FM filter
|
|
