Yaesu FL-100B

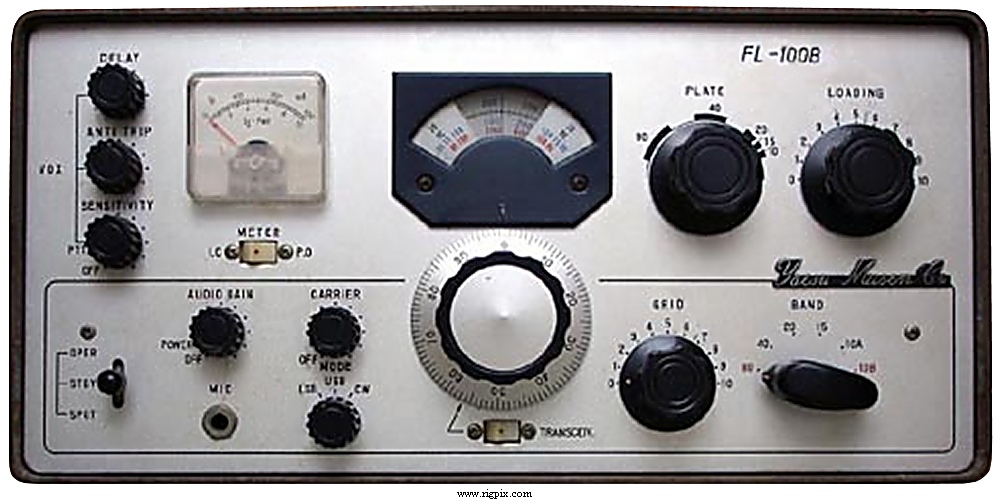

A picture of Yaesu FL-100B

SPECIFICATIONS

GENERAL
Type:Amateur HF transmitter
Frequency range: 10-80 m in 6 bands
3.5-4.1 MHz
6.9-7.5 MHz
13.9-14.5 MHz
20.9-21.5 MHz
27.9-28.5 MHz
28.5-29.1 MHz
Tuning steps:Analog / continuous
Frequency stability:100 Hz after warmup
Mode:AM / SSB / CW
Channels / memory management:None
Power supply:Mains: 100 / 110 / 117 / 200 / 220 / 234 VAC (Fixed power cord)
Current drain / power consumption:Less than 250 W
Antenna impedance / connector:50-120 ohm / SO-239
Dimensions (W*H*D):381*181*298 mm (15*7.12*11.75")
Weight:16 Kg (35.27 lb)
Other features:VOX.




TRANSMITTER SECTION
RF output power: AM: 50 W (Input)
SSB: 120 W (PEP input)
CW: 120 W (Input)
Modulation system:
Max FM deviation (Factory set):No FM
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / 3-pin (1/4" jack)
Microphone input level:? mV




MISCELLANEOUS
Manufactured:Japan, 1965-196x (Discontinued)
Additional info: 12BY7A driver and 6DQ5 final
See also the companion receiver, the FR-100B
Related documents: User manual (2.8 MB)
RF driver: 12BY7A
Modifications and fixes:
Reviews:
Options / Accessories:
- -

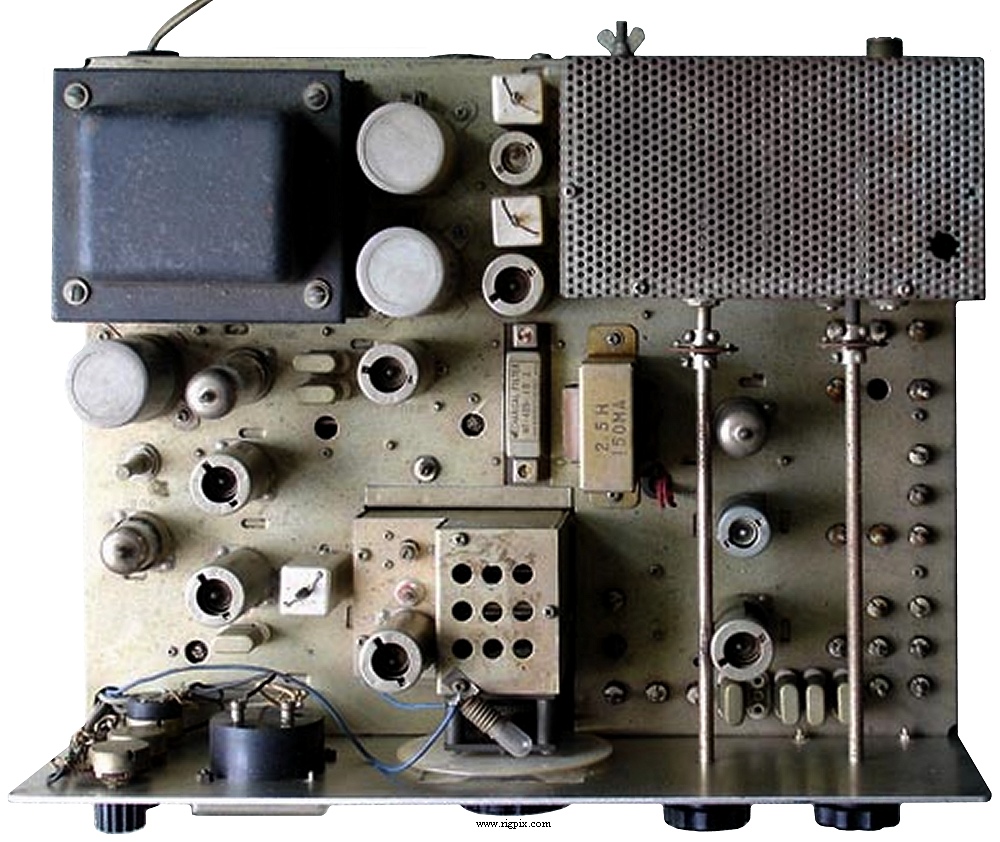

An inside rear picture of Yaesu FL-100B

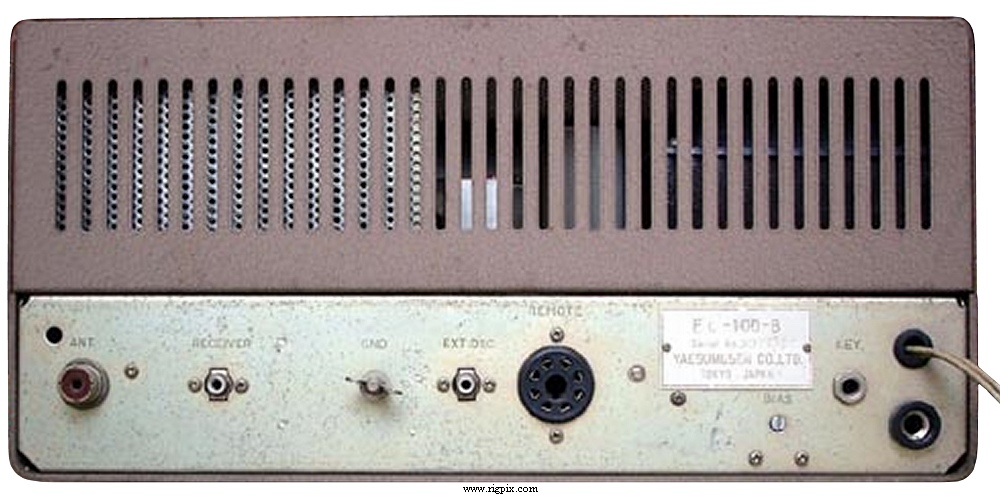

A rear picture of Yaesu FL-100B
