| GENERAL |
| Type: | 16-bit home computer |
| CPU: | Intel 8088 @ 4.77 MHz |
| Operating system(s): | MS-DOS |
| Memory: | ROM: ? KB
RAM: 256 KB (Expandable to 640 KB) |
| Power supply: | Mains |
| Current drain / power consumption: | |
| Dimensions (W*H*D): | 408*120*300 mm (16.1*4.72*11.81") |
| Weight: | ? Kg (? lb) |
|
|
|
|
| I/O |

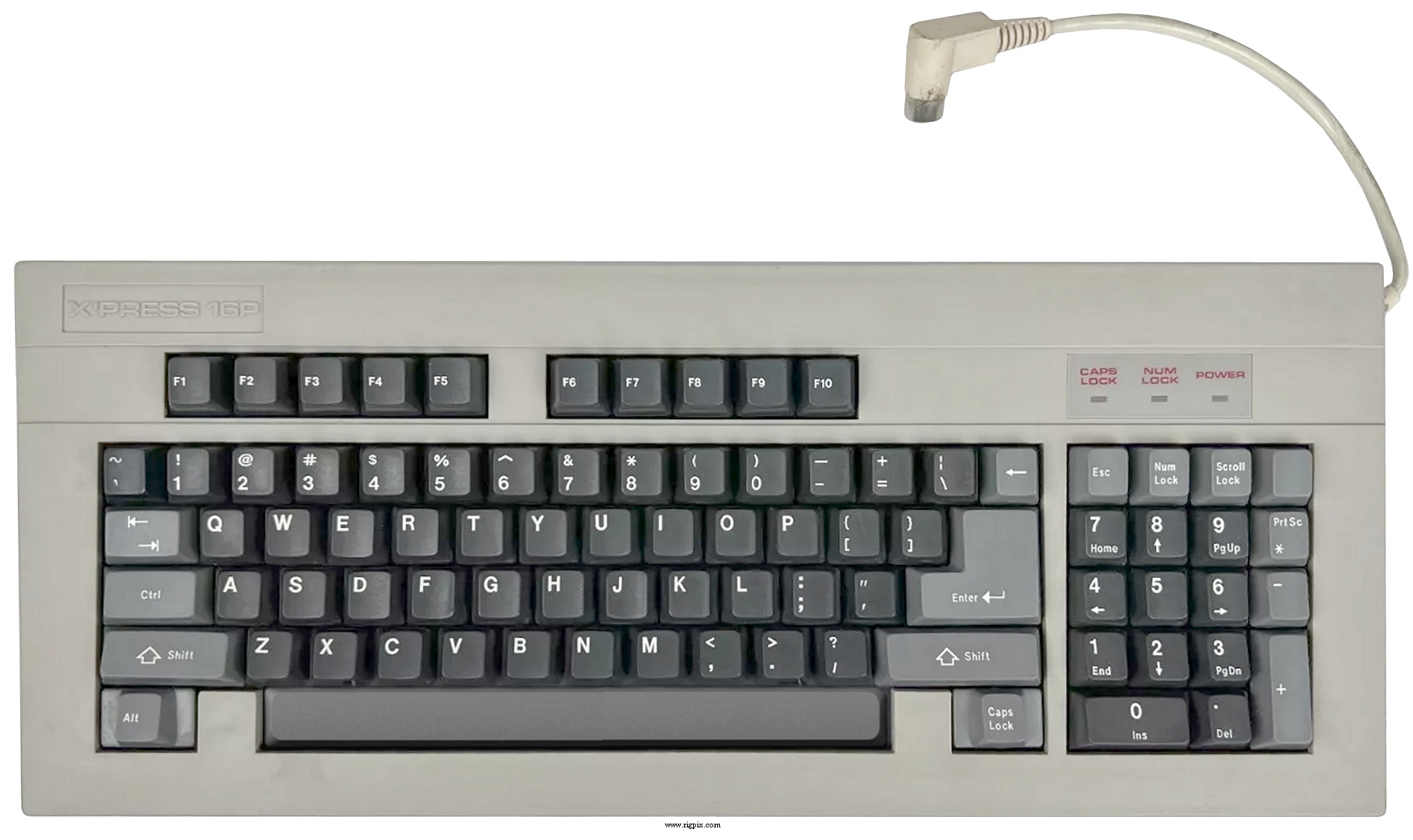

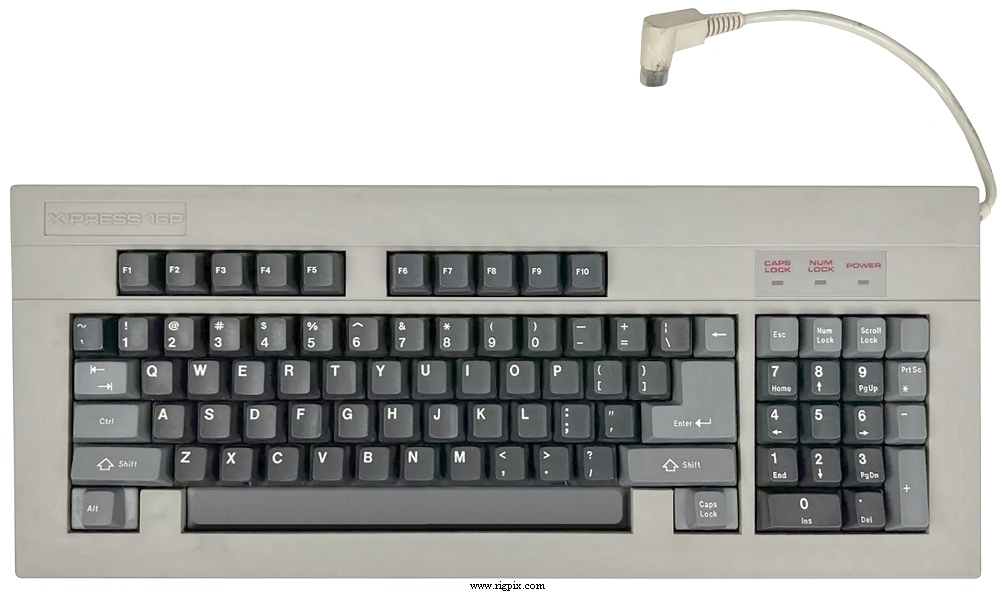

| Keyboard: | Separate QWERTY |
| Graphics: | Yamaha V6355 with 16 KB VRAM
CGA modes |
| Audio: | PC-sound |
| Storage: |
One or two built-in 5.25" (360 KB) floppy drives
Optional internal 30 MB hard drive
|
| External I/O ports: |
| Audio: | Phono/RCA |
| Joystick: | DA-15s / DB-15f |
| Keyboard: | 5-pin DIN |
| Monitor: | DE-9s / DB-9f |
| Mouse: | DE-9p / DB-9m |
| Printer: | DB-25s / DB-25f (Centronics compatible) |
| Video: | Phono/RCA (Composite B/W) |
|
| Other: | One internal ISA expansion slot. |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Hong Kong (By Bondwell), 1987-1988 (Discontinued) |
| Additional info: |
No MSX2 hardware or firmware.
This rare model is the successor of the SVI-808.
|
| Related documents: | |
| Modifications and fixes: | |
| Notable "ham" software: | Any MS-DOS compatible software of this era |
| Reviews: | |
| Options / Accessories: |
SVI-812
SVI-813
SVI-814
SVI-815
SVI-816
|
Multifunction card (384 KB RAM, RS-232C and RTC)
Cooler
PAL RF adapter
Monitor cable (D15 to 21-pin RGB)
Monitor cable (D15 to 8-pin analog/digital RGB)
|
|
