| GENERAL |

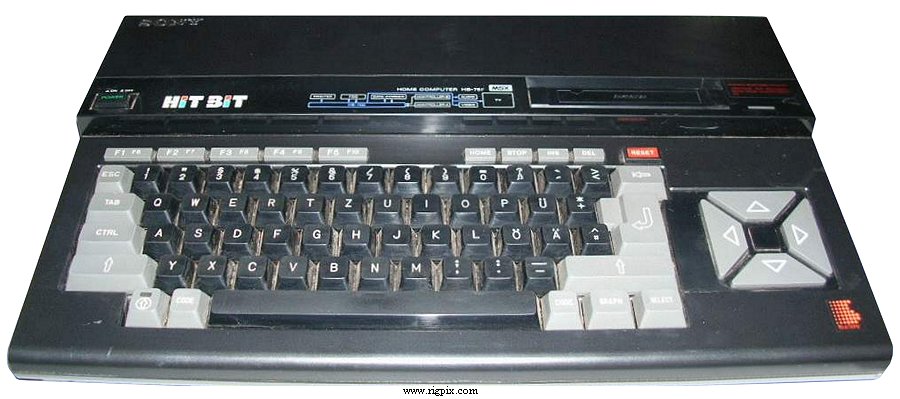

| Type: | 8-bit home computer |
| CPU: | Zilog Z80A @ 3.58 MHz |
| Operating system(s): | Microsoft Extended Basic (MSX Basic 1.0) |
| Memory: | ROM: 32 KB (+ 16 KB for built-in Personal Databank Software)
RAM: 64 KB |
| Power supply: | Mains |
| Current drain / power consumption: | ? W |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
|
|
|
|
| I/O |
| Keyboard: | Integrated |
| Graphics: |
TMS9918A with 16 KB VRAM
Text: 40*24 and 32*24 characters
256*192 pixels, 16 colors
64*48 pixels, 16 colors
32 sprites
|
| Audio: |
AY-3-8910
3 channels, 8 octaves + noise
|
| Storage: |
Tape recorder (1200 / 2400 bd)
Optional floppy disk drive
|
| External I/O ports / connectors: |
| RGB out: | SCART |
| Video out: | SCART (Composite) |
| RF out: | ? |
| Audio out: | ? |
| Parallel port: | ? (Centronics) |
| Tape I/O: | ? |
| Game ports: | Two ? |
| Cartridge slots: | Two ? |
| -: | ? |
|
| Other: | |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1984-198x (Discontinued) |
| Additional info: |
There were variations depending on target area:
HB-75 - Japanese version
HB-75D - German version
HB-75F - French model with SECAM video and AZERTY keyboard
HB-75P - General PAL version
HB-75S - Spanish version
|
| Related documents: |
Sound generator: AY-3-8910
|
| Modifications and fixes: | |
| Notable "ham" software: | |
| Reviews: | |
| Some options / Accessories: |
|
