| GENERAL |
| Type: | 8-bit home computer |
| CPU: | Zilog Z80A @ 3 MHz |
| Operating system(s): | Luxor Basic |
| Memory: | ROM: 16 KB
RAM: 16 KB (Expandable to 32 KB) |
| Power supply: | Mains: 220 VAC (Separate PSU) |
| Current drain / power consumption: | |
| Dimensions (W*H*D): | 394*80*340 mm (15.5*3.15*13.4") |
| Weight: | 3.1 Kg (6.683 lb) |
|
|
|
|
| I/O |
| Keyboard: | Integrated |
| Graphics: | Text: 40*24 characters, monochrome
(Optional 80*24 characters) |
| Audio: | SN76477 sound chip |
| Storage: | Tape recorder (700 baud)
Optional floppy drives |

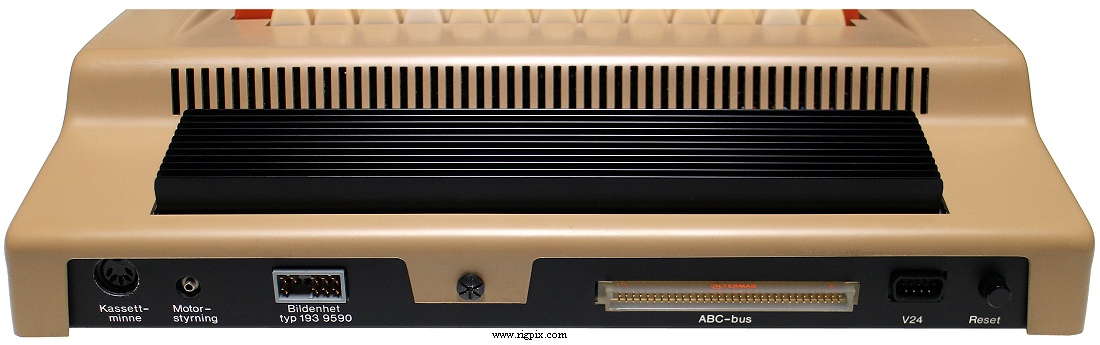

| External I/O ports: |
| ABC-bus: | 64-pin |
| Composite video: | 12-pin (Combined with PSU cable) |
| Motor relay: | TS "Subminijack" (2.5 mm) |
| RS-232C/V24: | DE-9p / DB-9m |
| Tape I/O: | 5-pin DIN (180°) |
| TV/RF out: | IEC 61169-2 "Belling-Lee" (On the PSU unit) |
|
| Other: | Reset button on the rear panel. |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Sweden, 1978-1985 (Discontinued) |
| Additional info: |
New price 1978 in Sweden: SEK 6900:- + VAT (With tape recorder)
|
| Related documents: |
User manual (3.5 MB, In swedish)
Service manual (10.5 MB, Multilanguage)
|
| Modifications and fixes: | |
| Notable "ham" software: |
CW-decoder by ELFA Radio (Requires a simple LM567 interface). See QTC 9/1979
|
| Reviews: | Radio & Television (Sweden): February 1980 (#2) |
| Options / Accessories: |
?
?
|
Expansion unit (Five card slots)
Dual 5.25" floppy drive unit
|
|
