| GENERAL |
| Type: | 16/32-bit home computer |
| CPU: | Motorola MC68000 @ 8 MHz |
| Operating system(s): | TOS with GEM desktop |
| Memory: | ROM: 256 KB
RAM: 4 MB (SIMM slots) |
| Power supply: | Mains (Internal PSU) |
| Current drain / power consumption: | Less than 120 W |
| Dimensions (W*H*D): | 476*70*292 mm (18.75*2.75*11.5") |
| Weight: | 4.3 Kg (9.5 lb) |
|
|
|
|
| I/O |
| Keyboard: | Integrated |
| Graphics: |
Up to 32 KB RAM
Text: 40 or 80*25 characters
320*200 pixels, 16 colors
640*200 pixels, 4 colors
640*400 pixels, monochrome
4096 color palette
Blitter co-processor
|
| Audio: | Yamaha YM2149 DMA stereo
3 voices + 1 noise channel, 8 octaves
|
| Storage: | Built-in 3.5" floppy (1 MB unformatted)
Optional hard drive and second floppy |
| External I/O ports: |
| Audio: | Two RCA jacks |
| Cartridge slot: | 40-pin edge connector |
| DMA/ACSI/Hard drive: | 19-pin socket |
| Floppy: | 14-pin |
| Mouse/Joystick: | Two DE-9p (DB-9m) |
| Mouse/Joystick (Enhanced): | Two 15-pin sockets |
| MIDI I/O: | Two 5-pin DIN (180°) |
| Printer (Centronics): | DB-25s / DB-25f |
| RS-232C: | DB-25p / DB-25m |
| TV/RF out: | RCA jack |
| Video (Composite & RGB): | 13-pin DIN |
|
| Other: | Genlock support. |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Taiwan, 1989-199x (Discontinued) |
| Additional info: |

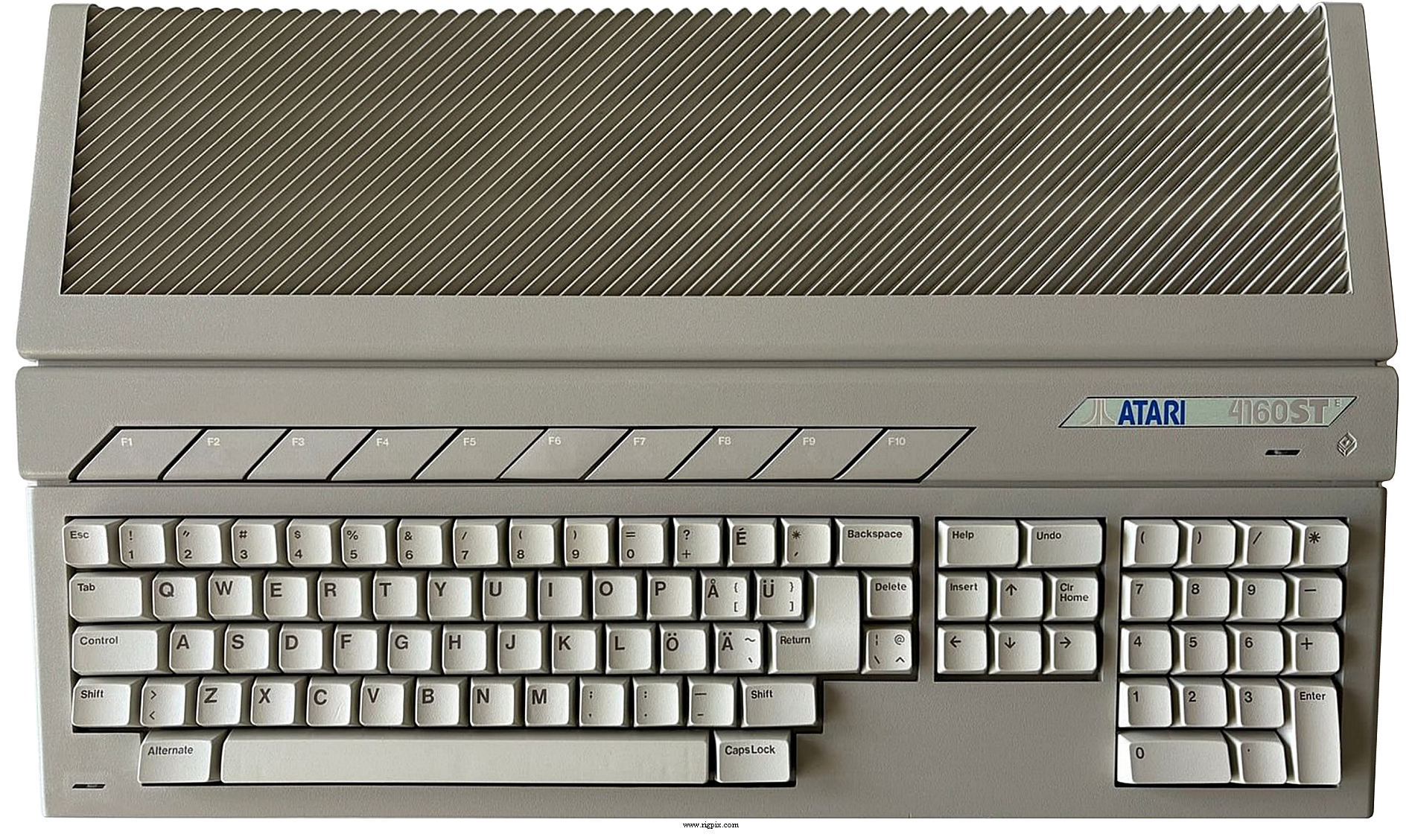

This specific version was sold to developers. It's nothing more
than a standard 1040 STe but with 4 MB RAM fitted from factory.
Some users upgraded their 1040 STe's to 4 MB and added
aftermarket 4160 STe badges.
|
| Related documents: |
STe addendum (907 KB)
Service manual v1991 (9.7 MB)
|
| Modifications and fixes: | |
| Notable "ham" software: |
ST-Wefax (With a Kantronics KPC or KAM) - By GM4JJJ (SK)
|
| Reviews: | |
| Options / Accessories: |
|
