| GENERAL |

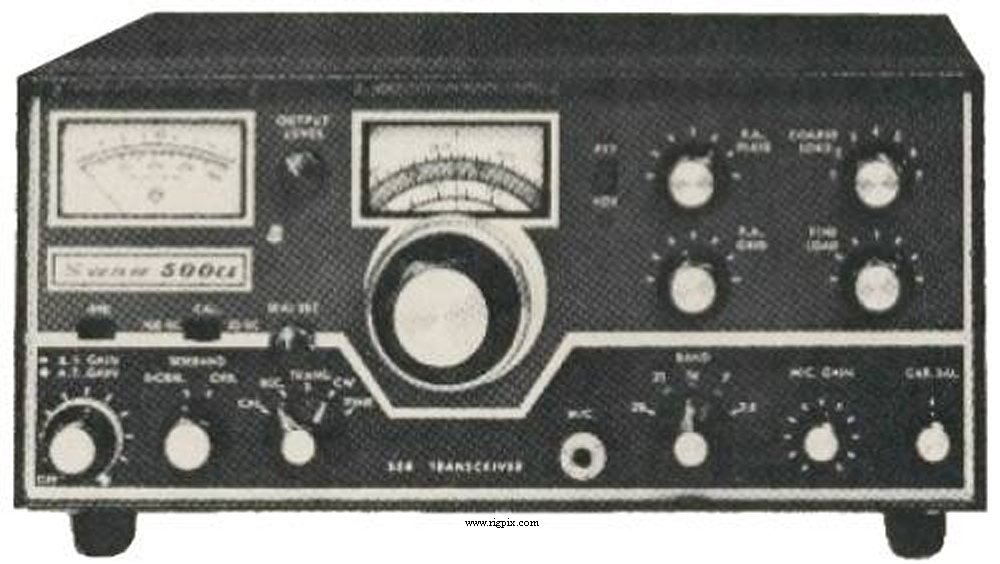

| Type: | Amateur HF transceiver |
| Frequency range: |
10-80 m in five bands
| 80 m: | 3.5-4 MHz |
| 40 m: | 7-7.5 MHz |
| 20 m: | 14-14.5 MHz |
| 15 m: | 21-21.45 MHz |
| 10 m: | 28-29.7 MHz |
|
| Tuning steps: | Analog / continuous |
| Frequency stability: | ±? ppm |
| Mode: | AM / SSB / CW |
| Channels / memory management: |
|
| Repeater shift / offset: | No |
| Power supply: | Separate PSU |
| Current drain / power consumption: | RX: ? W
TX: Max ? W |
| Antenna impedance / connector: | ? ohm / SO-239 |
| Dimensions (W*H*D): | 330*130*260 mm (12.99*5.12*10.24") |
| Weight: | 7.3 Kg (16.09 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
? conversion superheterodyne
|
| Sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| Pwr |
|---|
| AM: | ~70 W (125 W input) |
| SSB (PEP): | ~270 W (550 W PEP input) |
| CW: | ~180 W (360 W input) |
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin (1/4") |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 1970-197x (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
