Standard C-628

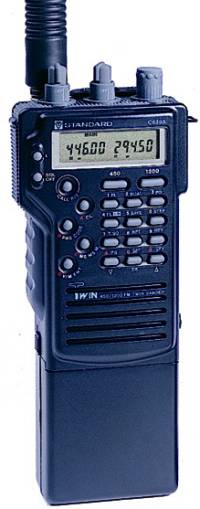

A picture of Standard C-628

SPECIFICATIONS

GENERAL
Type:Amateur UHF transceiver
Frequency range: Europe
TX: 430-440 / 1240-1300 MHz
RX: 430-440 / 1240-1300 MHz
USA
TX: 440-450 / 1240-1300 MHz
RX: 440-450 / 1240-1300 MHz
Tuning steps:? KHz
Frequency stability:±? ppm
Mode:FM
Channels / memory management:
Repeater shift / offset:±?
Power supply:7.2-9 VDC (Depending on battery pack)
or 6-16 VDC external
Current drain / power consumption:RX: ? mA
TX: Max ? A
Antenna impedance / connector:50 ohm / BNC
Dimensions (W*H*D):? mm (?")
Weight:? g (? oz)
Other features:DTMF. CTCSS/PL. Twin RX.




RECEIVER SECTION
Receiver system: ? conversion superheterodyne
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? mW at ?% distortion / ? ohm
External speaker connector:




TRANSMITTER SECTION
RF output power:

HighMidLow
70 cm:5 W2 W350 mW
23 cm:1 W? W100 mW
Modulation system:
Max FM deviation (Factory set):±5 KHz
Spurious emissions:Better than -? dB
Microphone impedance / connector:? ohm / ?-pin
Microphone input level:? mV




MISCELLANEOUS
Manufactured:Japan, 1991-199x (Discontinued)
Additional info:
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
- -
