| GENERAL |

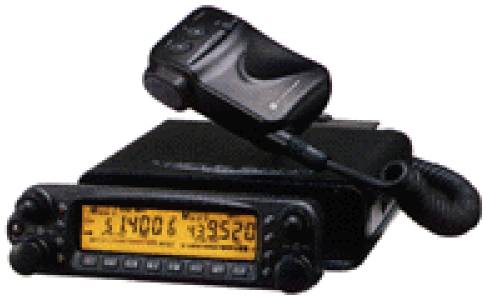

| Type: | Amateur VHF/UHF transceiver |
| Frequency range: |
TX: 50-54 / 144-146 / 430-440 MHz
RX: 44-225 / 240-530 / 550-1020 MHz
|
| Tuning steps: | 5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 / 100 KHz |
| Frequency stability: | ±? ppm |
| Mode: | TX: FM
RX: AM / FM |
| Channels / memory management: |
2*80 regular (Expandable to 2*200)
|
| Repeater shift / offset: | ±? |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | RX: ? mA
TX: Max ? A |
| Antenna impedance / connector: | 50 ohm / ? |
| Dimensions (W*H*D): | 140*40*173 mm (5.51*1.58*6.81") |
| Weight: | 1.2 Kg (2.65 lb) |
| Other features: |
CTCSS/PL and DTMF. 9K6 packet ready. DTMF remote control. Twin RX.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
? conversion superheterodyne
|
| Sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| High | Mid | Low |
|---|
| 6 m: | 20 W | 10 W | 3 W |
| 2 m: | 20 W | 10 W | 3 W |
| 70 cm: | 20 W | 10 W | 3 W |
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1997-199x (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
