Sony ICF-SW77

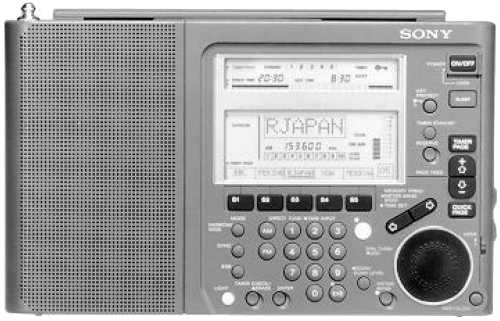

A picture of Sony ICF-SW77

SPECIFICATIONS

GENERAL
Type:HF/VHF receiver
Frequency range: Type 1 (General markets)
0.15-30 / 76-108 MHz
Type 2 (Austria, Germany and Scandinavian countries)
0.15-30 / 87.5-108 MHz
Type 3 (Italy)
0.15-0.285 / 0.531-1.602 / 3.85-26.1 / 76-108 MHz
Tuning steps:AM/SSB: 100 Hz / 1 KHz
MW: 9 or 10 KHz (Depending on market)
WFM: 50 / 500 KHz
Frequency stability:? ppm
Mode:AM / SSB / CW / WFM
Channels / memory management: 125 regular
Power supply:6 VDC (Four LR6 / AA batteries)
or 6 VDC external
Current drain / power consumption:? mA
Antenna impedance / connector:- / Telescopic whip and ferrite bar
Dimensions (W*H*D):194*127*39 mm (7.64*5*1.54"), including protruding parts and controls
Weight:900 g (31.75 oz), with batteries
Other features:World clock and timer.




RECEIVER SECTION
Receiver system: Single conversion superheterodyne (WFM)
IF: 10.7 MHz
Double conversion superheterodyne (AM/SSB)
1st IF: 55.845 MHz
2nd IF: 455 KHz
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:400 mW at 10% distortion / ? ohm
External speaker connector:




MISCELLANEOUS
Manufactured:1991-199x (Discontinued)
Additional info:
Related documents:User manual (1.2 MB)
Modifications and fixes:
Reviews:
Options / Accessories:
AN-1
AN-102
DCC-E160L
PC-261M
RK-G64
RK-G69
RK-G129
RK-G135
RK-G136
LW/MW/SW wide range antenna
LW/MW/SW wide range antenna
Car battery cord
Plug adapter
Connecting cord (Miniplug<->Miniplug, resistor type)
Connecting cord (Miniplug<->Miniplug, no resistor type)
Connecting cord (Phono plugs<->Miniplug, no resistor type)
Connecting cord (Stereo miniplugs<->Miniplug, resistor type)
Connecting cord (Stereo miniplugs<->Miniplug, no resistor type)
