| GENERAL |

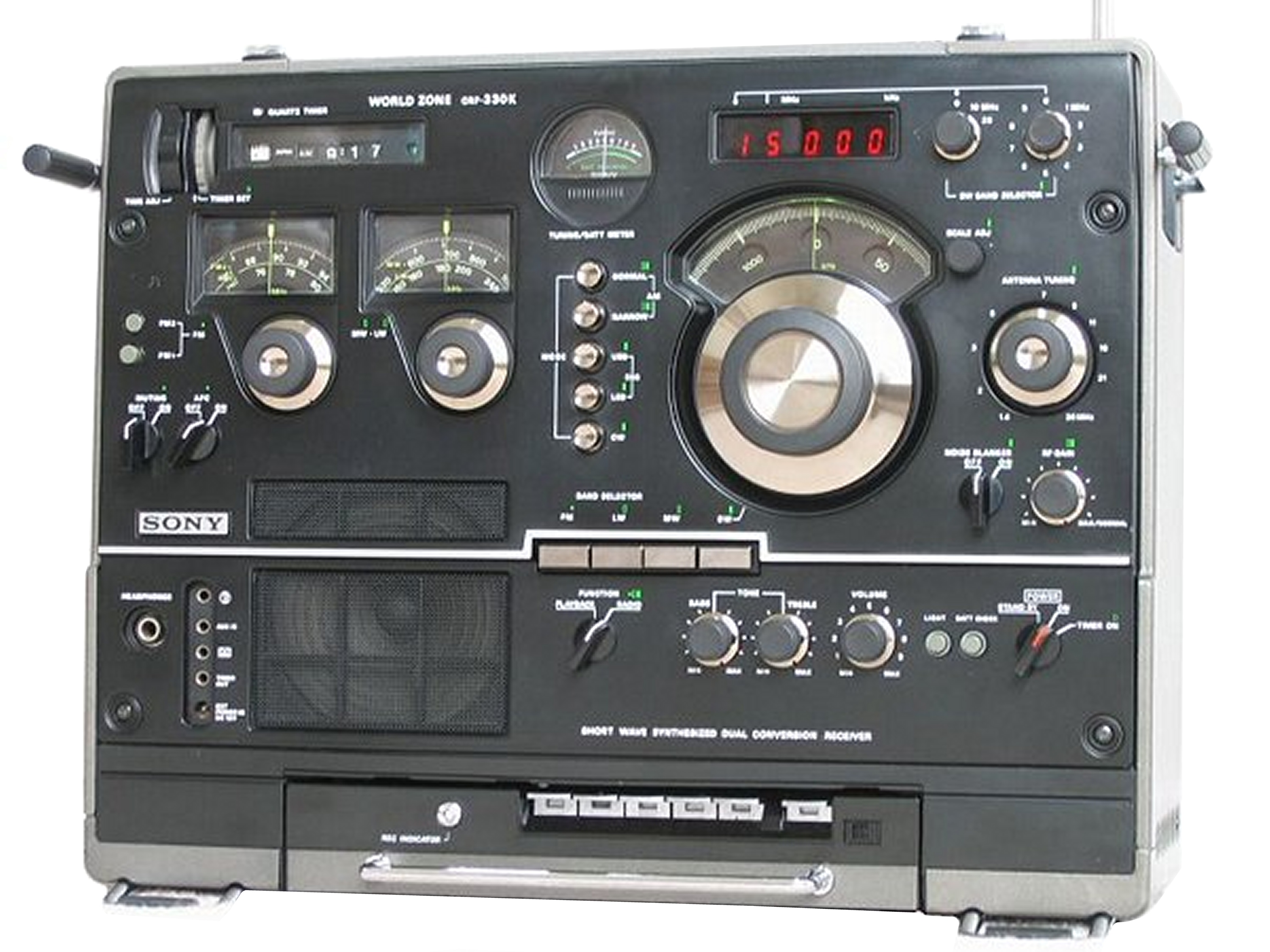

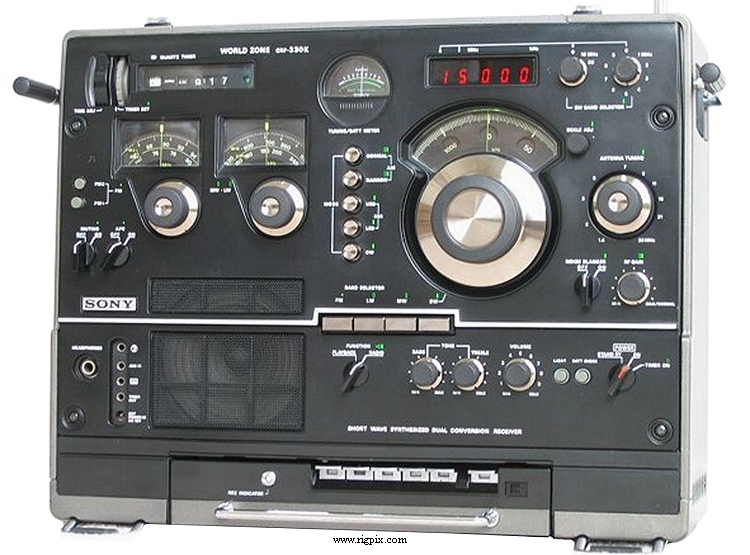

| Type: | HF/VHF receiver |
| Frequency range: |
0.15-30 / 88-108 MHz
|
| Tuning steps: | Analog / continuous |
| Frequency stability: | ? ppm |
| Mode: | AM / WFM / SSB / CW |
| Channels / memory management: |
None
|
| Power supply: | Mains
or eight LR20 / D batteries
or 12 VDC external |
| Current drain / power consumption: | ? mA @ 12 VDC |
| Antenna impedance / connector: | 50-75 ohm / External
- / Telescopic whip |
| Dimensions (W*H*D): | 452*310*208 mm (17.8*12.2*8.2") |
| Weight: | 13.15 Kg (29 lb) |
| Other features: | Built-in cassette recorder. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
? conversion superheterodyne
|
| Sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1978-1980 (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
