| GENERAL |
| Type: | Amateur VHF transceiver |
| Frequency range: |
USA
TX: 143-149 MHz
RX: 143-150 MHz
|
| Tuning steps: | 5 KHz |
| Frequency stability: | ±? ppm |
| Mode: | FM |
| Channels / memory management: |
10 regular
1 search limit pair
RAM storage with main battery backup
|
| Repeater shift / offset: | ±600 KHz |
| Power supply: | 9.6 VDC (NiCd battery pack) |
| Current drain / power consumption: | RX: 45-150 mA
TX: Max 900 mA |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 68*170*47 mm (2.68*6.69*1.85") |
| Weight: | 600 g (1.32 lb) |
| Other features: | DTMF. LED display. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 16.9 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.32 uV (12 dB SINAD) |
| Squelch sensitivity: | Less than 0.32 uV (Threshold) |
| Noise figure: | |
| Selectivity: | 15 KHz (-6 dB)
30 KHz (-70 dB) |
| Image rejection: | |
| AF output power / speaker: | 300 mW at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | ? ohm / 6-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1980-1981 (Discontinued) |
| Additional info: |
FCC Data: HT-1200 (Part 15 certified)
New price, november 1980 in the US: $339.00
New price, april 1981 in the US: $315.00
New price, june 1981 in the US: $299.00
New price, november 1981 in the US: $288.00
New price, february 1982 in the US: $269.00
|
| Related documents: |
User manual (3 MB)
FM-IF: MC3357P
AF amplifier: uPC575C2
RF driver: 2SC2407
|
| Modifications and fixes: | |
| Reviews: | Ham Radio Magazine: July 1982, page 34 (Owners survey) |
| Options / Accessories: |
8N-500AA
QCK-1250A1

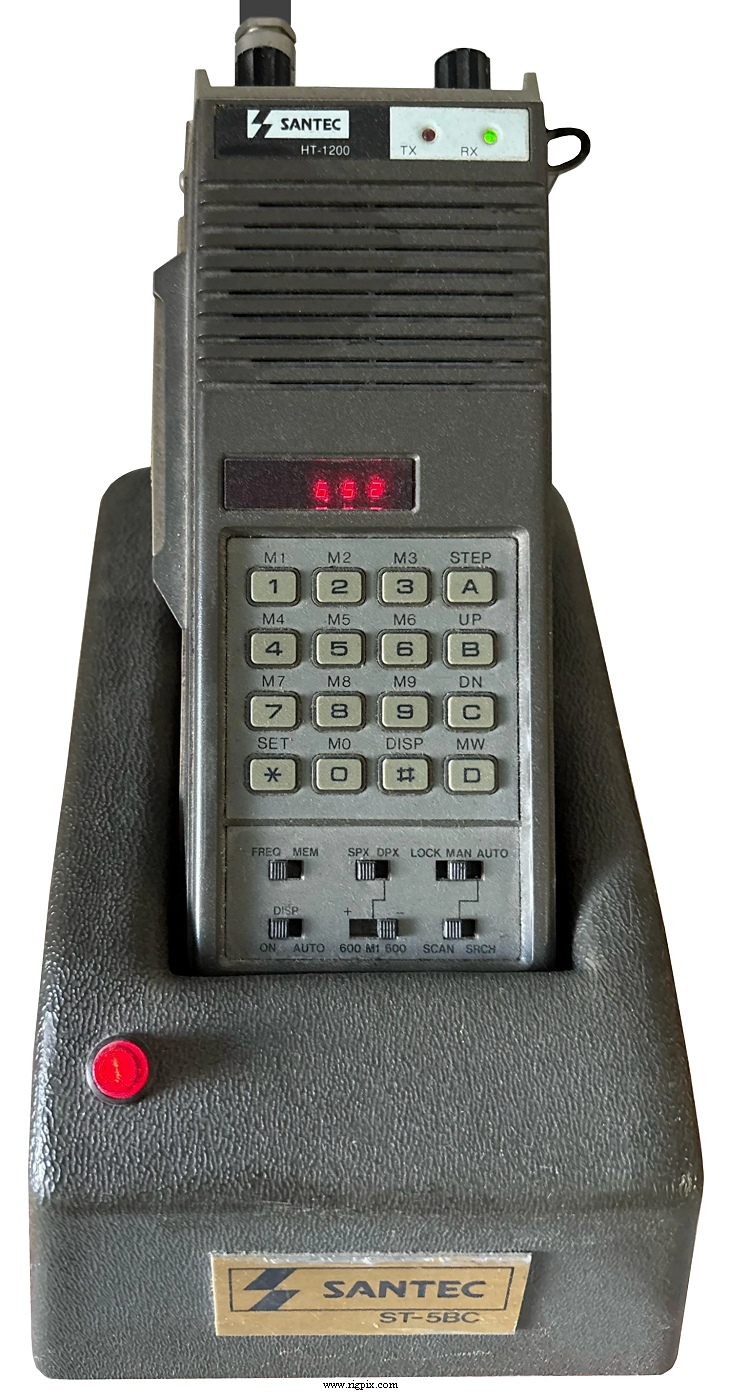

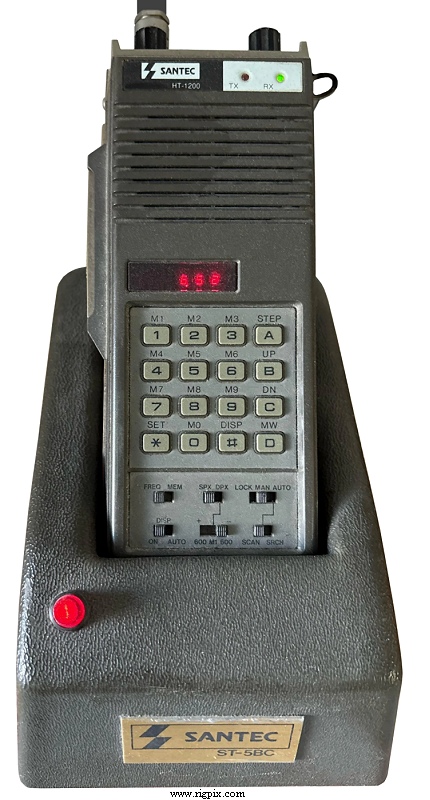

ST-5BC
|
NiCd battery pack. 9.6 V, 500 mAh
AC battery charger
Base charger
|
|
