Realistic Patrolman Pro-45 (20-141)

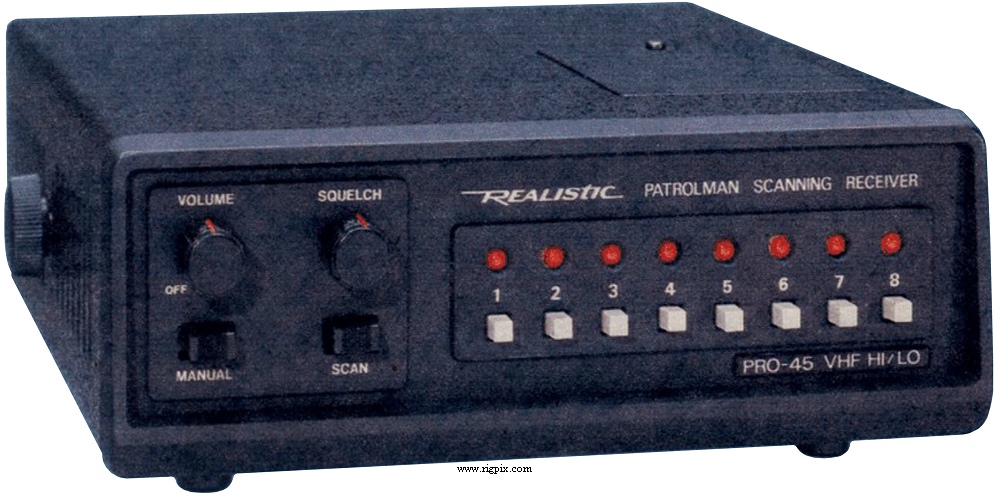

A picture of Realistic Patrolman Pro-45 (20-141)

SPECIFICATIONS

GENERAL
Type:VHF receiver/scanner
Frequency range: 30-50 / 144-174 MHz (USA)
Tuning steps:Channelized
Frequency stability:? ppm
Mode:FM
Channels / memory management: 8 regular @ 10 channels per second
XTAL controlled
Power supply:Mains: 120 VAC
or 12 VDC
Current drain / power consumption:? mA @ 12 VDC
Antenna impedance / connector:50-75 ohm / ?
Dimensions (W*H*D):190*64*229 mm (7.5*2.5*9")
Weight:? Kg (? lb)
Other features:




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: 455 KHz
Sensitivity:0.8 uV (20 dB noise quieting)
Selectivity:
Image rejection:
AF output power / speaker:? W at ?% distortion / ? ohm
External speaker connector:




MISCELLANEOUS
Manufactured:1979-198x (Discontinued)
Additional info: New price 1979 in the US: $139.95
New price 1980 in the US: $149.95
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
- -
