RadioShack Pro-93 (20-523)

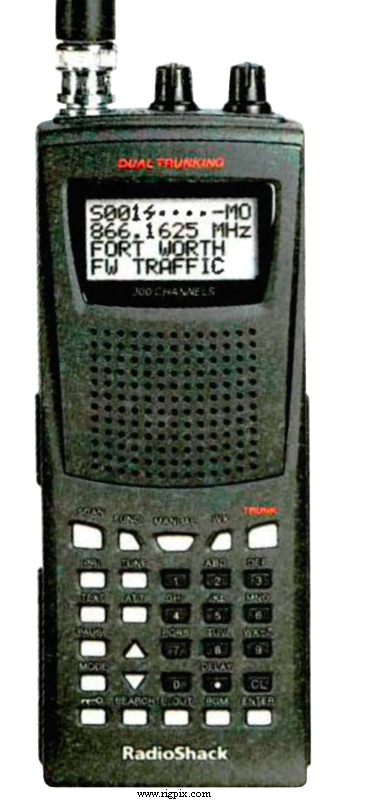

A picture of RadioShack Pro-93 (20-523)

SPECIFICATIONS

GENERAL
Type:HF/VHF/UHF receiver/scanner
Frequency range: 25-54 / 108-174 / 216-225 / 406-512 / 806-824 / 849-869 / 894-960 / 1240-1300 MHz (USA)
Tuning steps:? KHz
Frequency stability:? ppm
Mode:AM / FM
Channels / memory management: 300 regular @ 25 channels per second Alpha tags
Power supply:4.8-6 VDC (Four R6 / AA alkaline or rechargeable batteries)
Current drain / power consumption:? mA
Antenna impedance / connector:50 ohm / BNC
Dimensions (W*H*D):67*160*44 mm (2.62*6.31*1.75")
Weight:? g (? oz)
Other features: Trunktracker: Motorola I, II I/II and GE/Ericsson.
Weather alert. PC-programmable. Cloning. Attenuator (20 dB).




RECEIVER SECTION
Receiver system: Triple conversion superheterodyne
1st IF: ? MHz
2nd IF: ? MHz
3rd IF: ? KHz
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? mW at ?% distortion / ? ohm
External speaker connector:




MISCELLANEOUS
Manufactured:(By GRE), 2001-200x (Discontinued)
Additional info: New price 2002 in the US: $249.99
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
- -
