RadioShack Pro-2053 (20-466)

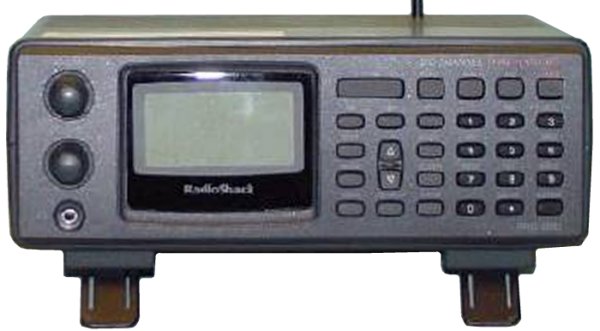

A picture of RadioShack Pro-2053 (20-466)

SPECIFICATIONS

GENERAL
Type:HF/VHF/UHF receiver/scanner
Frequency range: 25-54 / 108-174 / 216-225 / 406-512 / 806-824 / 849-869 / 894-960 / 1240-1300 MHz (USA)
Tuning steps:? KHz
Frequency stability:? ppm
Mode:AM / FM
Channels / memory management: 300 regular @ 25 channels per second
Power supply:13.8 VDC
Current drain / power consumption:? mA
Antenna impedance / connector:50 ohm / BNC
Dimensions (W*H*D):215*80*165 mm (8.46*3.15*6.5")
Weight:750 g (1.65 lb)
Other features: Trunktracker: Motorola and GE/Ericsson. . Attenuator (20 dB). Weather alert.
PC-programmable. Cloning.




RECEIVER SECTION
Receiver system: Triple conversion superheterodyne
1st IF: 380.8 MHz
2nd IF: 21.4 MHz
3rd IF: 455 KHz
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? W at ?% distortion / ? ohm
External speaker connector:




MISCELLANEOUS
Manufactured:Hong Kong (By GRE), 2002-200x (Discontinued)
Additional info: New price 2002 in the US: $249.99
Related documents:User manual (268 KB)
Modifications and fixes:
Reviews:
Options / Accessories:
- -
