| GENERAL |

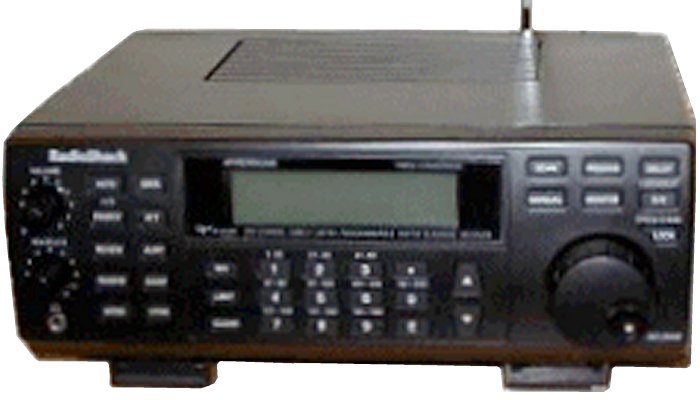

| Type: | VHF/UHF receiver/scanner |
| Frequency range: | 29-54 / 108-174 / 216-512 / 806-824 / 851-869 / 896-1000 MHz (USA) |
| Tuning steps: | 5 / 12.5 KHz |
| Frequency stability: | ? ppm |
| Mode: | AM / FM |
| Channels/memory management: |
200 regular in 10 banks @ 50 ch/s
10 monitor
10 priority
7 NOAA WX channels with WX alert
|
| Power supply: | 12 VDC |
| Current drain/power consumption: | Less than 500 mA |
| Antenna impedance/connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 235*82*205 mm (9.25*3.25*8.06") |
| Weight: | 960 g (2.12 lb) |
| Other features: | Attenuator. Data skip. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Triple conversion superheterodyne
1st IF: 370.7 MHz
2nd IF: 10.85 MHz
3rd IF: 450 KHz
|
| Sensitivity: |
AM (20 dB S+N/N)
127.175 MHz: 1.5 uV
230.05 MHz: 1.5 uV
325.05 MHz: 1.5 uV
FM (20 dB S+N/N)
40.84 MHz: 0.5 uV
162.4 MHz: 0.6 uV
453.25 MHz: 0.6 uV
954.9125 MHz: 0.8 uV
|
| Selectivity: | |
| Image rejection: | |
| AF output power/speaker: | 1 W at ?% distortion / 8 ohm |
| External speaker connector: | 3.5 mm headphones jack only |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Philippines (By Uniden), 1996-200x (Discontinued) |
| Additional info: |
New price 1997 in the US: $349.99
|
| Related documents: | User manual (680 KB) |
| Modifications and fixes: | |
| Reviews: | |
| Options/Accessories: |
|
20-0031
|
CTCSS/PL tone board
|
|
