RadioShack HTX-212 (19-1125)

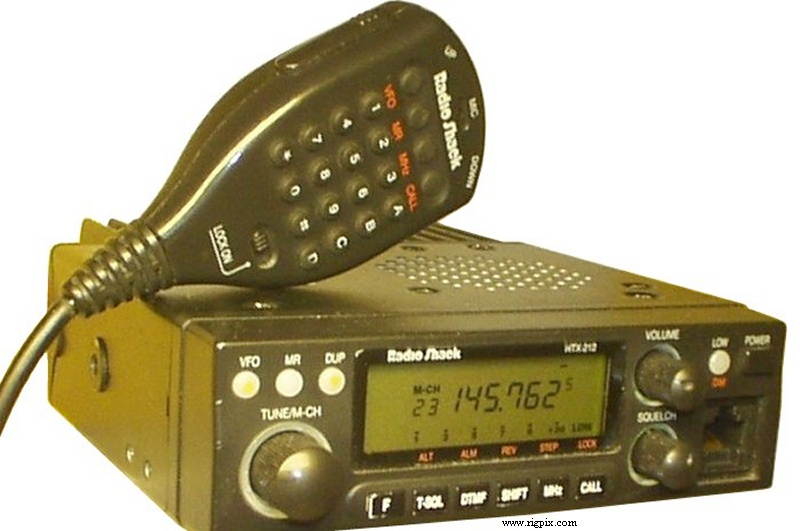

A picture of RadioShack HTX-212 (19-1125)

SPECIFICATIONS

GENERAL
Type:Amateur VHF transceiver
Frequency range: TX: 144-148 MHz
RX: 136-174 MHz
Tuning steps:5 / 10 / 12.5 / 20 / 25 / 50 / 100 KHz
Frequency stability:10 ppm
Mode:FM
Channels / memory management: 30 regular
1 call
Repeater shift / offset:0 to 4 MHz in 10 KHz steps
Power supply:13.8 VDC 15%
Current drain / power consumption:RX: ? mA
TX: 7-9 A
Antenna impedance / connector:50 ohm / SO-239 (On pigtail)
Dimensions (W*H*D):142*42*160 mm (5.59*1.65*6.3")
Weight:? Kg (? lb)
Other features:CTCSS/PL. DTMF.




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 21.4 MHz
2nd IF: 455 KHz
Sensitivity:0.25 uV (12 dB SINAD)
Selectivity:
Image rejection:
AF output power / speaker:2 W at 2% distortion / 8 ohm
External speaker connector:3.5 mm




TRANSMITTER SECTION
RF output power:

HighLow
2 m:45 W10 W
Modulation system:
Max FM deviation (Factory set):5 KHz
Spurious emissions:Better than -60 dB
Microphone impedance / connector:1.2 Kohm / 8-pin (Modular)
Microphone input sensitivity:4 mV (RMS)




MISCELLANEOUS
Manufactured:Korea (By Midland), 1995-199x (Discontinued)
Additional info:
Related documents:User manual (1.1 MB)
Modifications and fixes:
Reviews:
Options / Accessories:
- -
