| GENERAL |

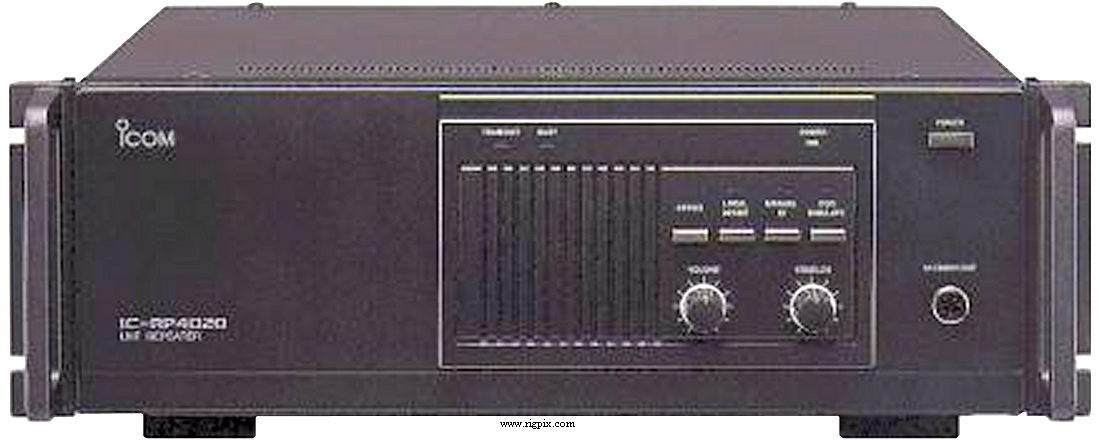

| Type: | Amateur UHF repeater |
| Frequency range: |
TX: 430-450 MHz
RX: 430-450 MHz
|
| Tuning steps: | ? KHz |
| Frequency stability: | ±? ppm |
| Mode: | FM |
| Channels / memory management: | |
| Repeater shift / offset: | Freely programmable |
| Signalling: |
|
| Connectivity: | |
| Power supply: | Mains
or ? VDC |
| Current drain / power consumption: | RX: Max 1.2 A
TX: Max 7, 10 or 17 A (Depending on version) |
| Antenna impedance / connector: | 50 ohm / Two ? |
| Dimensions (W*H*D): | 425*149*368 mm (16.73*5.87*14.5") |
| Weight: | 17 Kg (37.5 lb) |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
10, 25 or 50 W (Depending on version)
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 19xx-19xx (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
