| GENERAL |

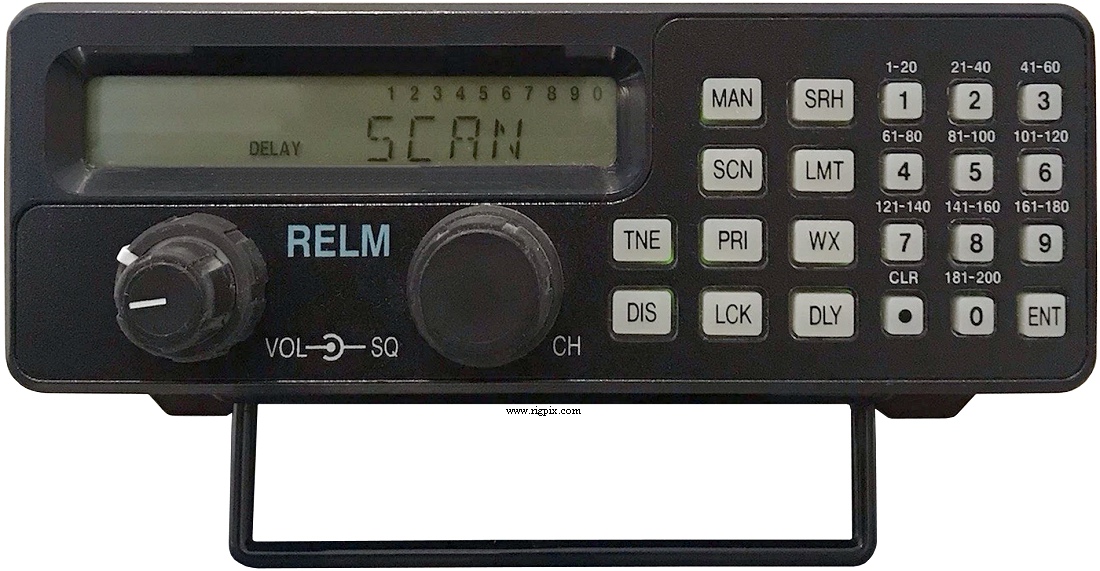

| Type: | VHF/UHF receiver/scanner |
| Frequency range: |
29-54 / 118-174 / 406-520 / 806-960 MHz (Cellular blocked in USA)
|
| Tuning steps: | 5 KHz (VHF Low/High)
12.5 KHz (VHF High/UHF)
25 KHz (Air band) |
| Frequency stability: | ? ppm |
| Mode: | AM / FM |
| Channels / memory management: |
200 regular in 10 banks @ up to 100 channels per second
100 search lockout
10 priority (One per bank)
8 NOAA weather channels
1 search limit pair
Alpha tags (Up to 7 characters)
Non-volatile storage
|
| Power supply: | 13.8 VDC ±15% (Male barrel jack, center positive) |
| Current drain / power consumption: | 185-490 mA |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
| Other features: |
CTCSS/PL and DCS. Weather alert. PC programmable. Tape out jack.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: |
AM (10 dB S/N)
118-136 MHz: 0.7 uV
FM (12 dB SINAD)
29-54 MHz: 0.4 uV
136-174 MHz: 0.5 uV
406-520 MHz: 0.5 uV
806-960 MHz: 0.5 uV
|
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | 50 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 2 W at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 8 ohm |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 1997-199x (Discontinued) |
| Additional info: |
FCC ID: ARUSMS200
|
| Related documents: |
User manual (783 KB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
MSPCKIT
|
Windows programming software
|
|
