Samlex SEC 1223

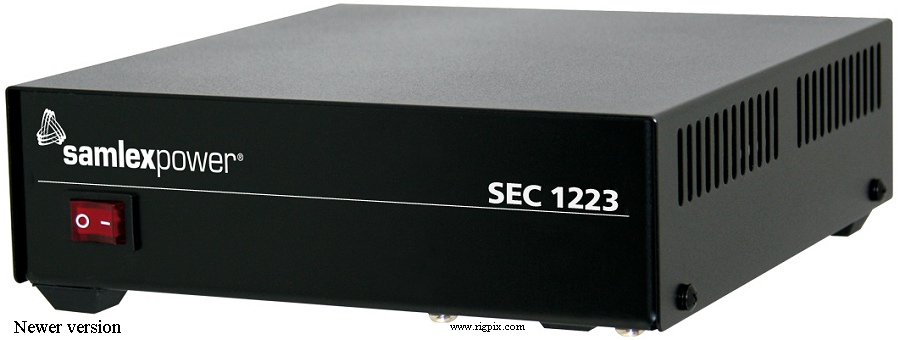

A picture of Samlex SEC 1223, newer version

SPECIFICATIONS

Type:Switch mode power supply
Input voltage:120 or 230 VAC
Output voltage:13.8 VDC ±0.1 V
Output current:Max 23 A
Ripple:<150 mVpp
Voltage fluctuation:
Efficiency:85% ±5%
Dimensions (W*H*D):180*53*190 mm (7.09*2.09*7.48")
Weight:1.57 Kg (3.46 lb)
Manufactured:199x-20xx
Additional info: Cooling fan. Over-temperature, over-current, short-circuit
and over-voltage protection.
The earliest production units caused some RFI problems.
This appears to have been fixed on later units.
Related documents:
Modifications and fixes:
Reviews:
A picture of Samlex SEC 1223, older version
