| Type: | Switch mode power supply |

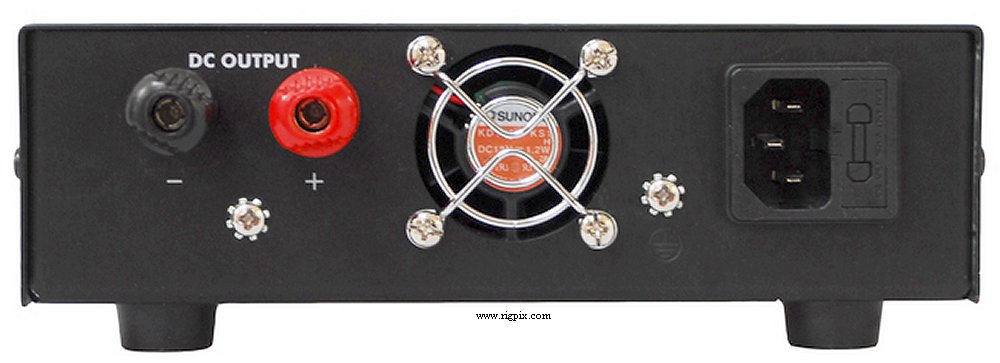

| Input voltage: | Mains: 230 VAC (3-pin IEC C14 connector) |
| Output voltage: | 13.8 VDC (13.3-14.5 VDC adjustable) |
| Output current: | 23 A (25 A peak @ 50% duty cycle) |
| Ripple: | <50 mVpp (5 mV RMS) |
| Voltage fluctuation: | <100 mV (0-100% load) |
| Efficiency: | |
| Dimensions (W*H*D): | 181*63*190 mm (7.13*2.48*7.48") |
| Weight: | 1.55 Kg (3.42 lb) |
| Manufactured: | Hong Kong (By Manson Engineering Industrial Ltd.), 2005-20xx |
| Additional info: |
Overcurrent/short circuit protection
Over voltage protection (From 16.5 V).
Overheating protection. Built-in fan.

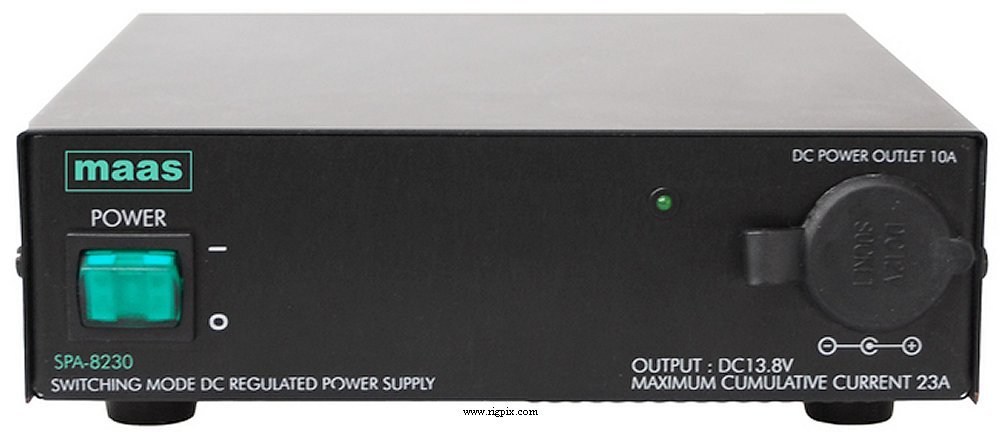

Cigarette lighter socket on the front.
New price 2013 in Sweden: SEK 995:-.
New price 2013 in Germany: 89.00 Euro.
New price, july 2024 in Spain: 153.94 Euro.
|
| Related documents: |
User manual (338 KB)
Schematic diagram (28 KB)
|
| Modifications and fixes: | |
| Reviews: | |
