Kikusui PAD 55-20L

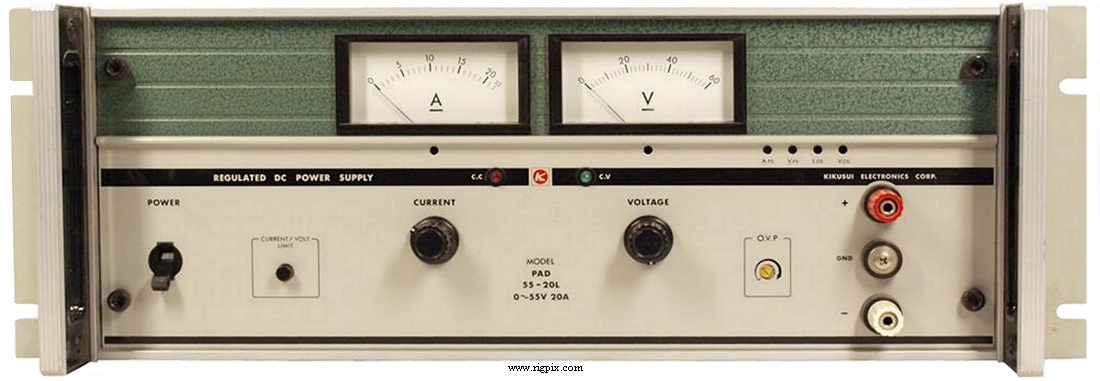

A picture of Kikusui PAD 55-20L

SPECIFICATIONS

Type:Linear regulated power supply
Input voltage:120 / 240 VAC ±10%
Output voltage:0-55 VDC
Output current:Max 20 A
Ripple:Max 500 uV RMS
Voltage fluctuation:0.005% + 1 mV (For 10% change of input voltage)
Efficiency:
Dimensions (W*H*D):430*160*400 mm (16.9*6.3*15.8")
Weight:33 Kg (72.75 lb)
Manufactured:Japan, 19xx-19xx (Discontinued)
Additional info:
Related documents:User manual (2.7 MB)
Modifications and fixes:
Reviews:
