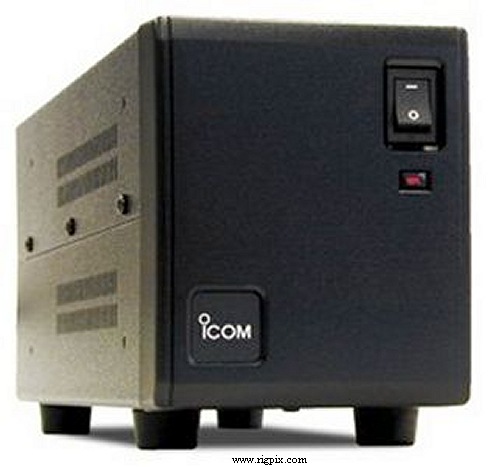

Icom PS-125
SPECIFICATIONS
| Type: | Switch mode power supply |
| Input voltage: | 230 VAC |
| Output voltage: | 13.8 VDC ±5% |
| Output current: | Max 25 A |
| Ripple: | |
| Voltage fluctuation: | Max ±?% of input voltage |
| Efficiency: | |
| Dimensions (W*H*D): | 111*94*287 mm (4.4*3.7*11.3") |
| Weight: | 3 Kg (6.6 lb) |
| Manufactured: | Japan, 2001-200x (Discontinued) |
| Additional info: | |
| Related documents: |
User manual (378 KB)
Service manual (1.3 MB)
|
| Modifications and fixes: | |
| Reviews: | |
|
