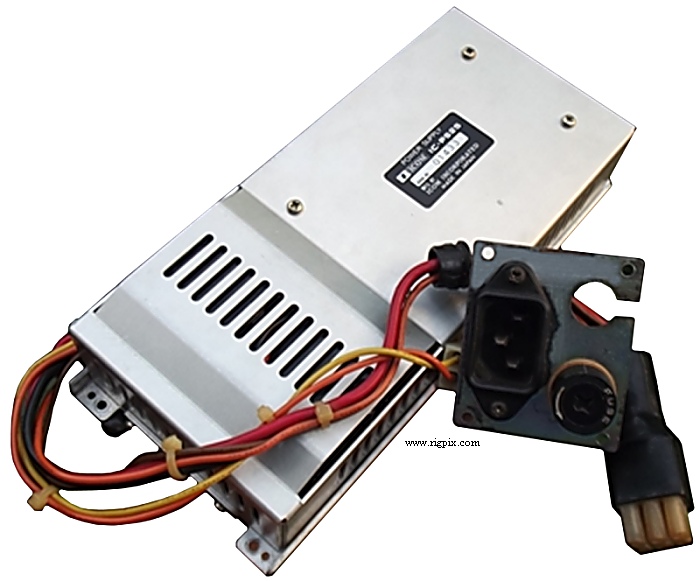

| Type: | Internal switch mode power supply |
| Input voltage: | 110 / 220 VAC |
| Output voltage: | 13.8 VDC |
| Output current: | Max 8 A (50% duty cycle) |
| Ripple: | |
| Voltage fluctuation: | Max ±10% of input voltage |
| Efficiency: | |
| Dimensions (W*H*D): | 207*48*92 mm (8.2*1.9*3.62") |
| Weight: | 1 Kg (2.2 lb) |
| Manufactured: | Japan, 198x-198x (Discontinued) |
| Additional info: |
Made for:
IC-271A
IC-271E
IC-371
IC-471A
IC-471E
IC-1271
IC-1271A
IC-1271E
and possibly other radios...
|
| Related documents: | User manual (331 KB) |
| Modifications and fixes: | |
| Reviews: | |
