| Type: | Linear regulated power supply |
| Input voltage: | 220 VAC (Fixed power cord) |

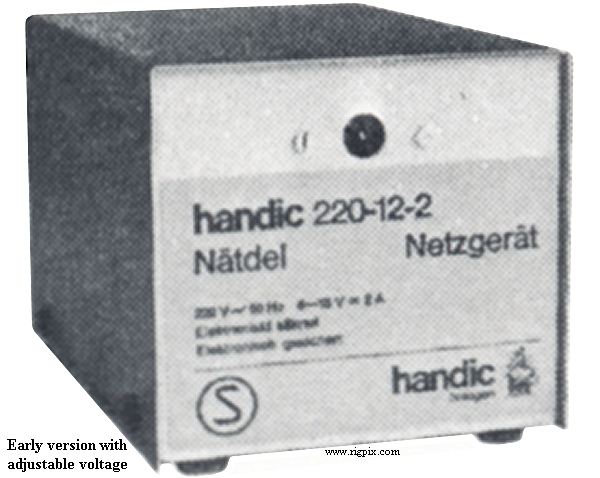

| Output voltage: | Early: Adjustable 6-15 VDC
Later: Fixed 13.8 VDC |
| Output current: | 1.5 A (2 A peak) |
| Ripple: | |
| Voltage fluctuation: | |
| Efficiency: | |
| Dimensions (W*H*D): | Early: 80*75*120 mm (3.15*2.95*4.72")
Later: 113*73*170 mm (4.45*2.87*6.69") |
| Weight: | Early: ? Kg (? lb)
Later: 3.4 Kg (7.5 lb) |
| Manufactured: |
Early: 197x-1975 (Discontinued)
Later: 1976-198x (Discontinued)
|
| Additional info: |
The later version had two different types of spring terminals
during its lifespan. The square type was short lived and was
used around 1977-78.
New price 1975 in Sweden: SEK 195:-
New price 1976 in Sweden: SEK 199:-
New price 1977 in Sweden: SEK 199:-
New price 1978 in Sweden: SEK 199:-
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
